STH160N4LF6-2 Datasheet and Replacement


   Type Designator: STH160N4LF6-2
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel
   Pd ⓘ - Maximum Power Dissipation: 150 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 40 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
   |Id| ⓘ - Maximum Drain Current: 120 A
   Tj ⓘ - Maximum Junction Temperature: 175 °C
   tr ⓘ - Rise Time: 131 nS
   Cossⓘ - Output Capacitance: 770 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.0022 Ohm
   Package: H2PAK-2


 STH160N4LF6-2 substitution

   - MOSFET ⓘ Cross-Reference Search



STH160N4LF6-2 Datasheet (PDF)

 ..1. Size:1024K  st
 sth160n4lf6-2.pdf pdf_icon

STH160N4LF6-2

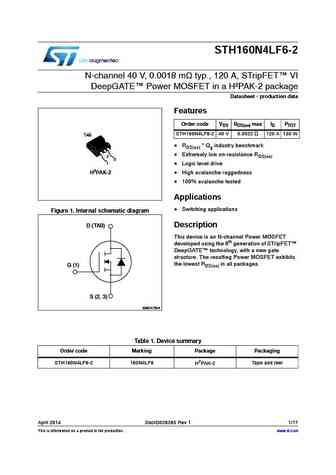

STH160N4LF6-2N-channel 40 V, 0.0018 m typ., 120 A, STripFET VIDeepGATE Power MOSFET in a HPAK-2 packageDatasheet - production dataFeaturesOrder code VDS RDS(on) max ID PTOTSTH160N4LF6-2 40 V 0.0022 120 A 150 WTAB RDS(on) * Qg industry benchmark Extremely low on-resistance RDS(on)231 Logic level driveH2PAK-2 High avalanche ruggedness 1
