Type Designator: SW2N10

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 0.2 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 100 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 15 V

|Id| ⓘ - Maximum Drain Current: 2 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 22 nS

Cossⓘ - Output Capacitance: 50 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.24 Ohm

Package: SOT-23

SW2N10 substitution

- MOSFET ⓘ Cross-Reference Search



SW2N10 datasheet

 ..1. Size:430K  samwin
 sw2n10.pdf pdf_icon

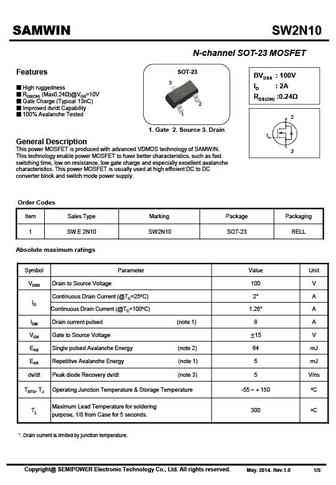

SW2N10

SAMWIN SW2N10 N-channel SOT-23 MOSFET SOT-23 Features BVDSS 100V 3 ID 2A High ruggedness RDS(ON) (Max0.24 )@VGS=10V RDS(ON) 0.24 Gate Charge (Typical 13nC) 2 Improved dv/dt Capability 100% Avalanche Tested 1 2 1. Gate 2. Source 3. Drain 1 General Description This power MOSFET is produced with advanced VDMOS technology of SAMWIN. ... See More ⇒
