   Type Designator: CJ2333
   Type of Transistor: MOSFET
   Type of Control Channel: P -Channel
   Pd ⓘ - Maximum Power Dissipation: 0.35 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 12 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 8 V
   |Id| ⓘ - Maximum Drain Current: 6 A
   Tj ⓘ - Maximum Junction Temperature: 150 °C
   tr ⓘ - Rise Time: 24 nS
   Cossⓘ - Output Capacitance: 255 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.028 Ohm
   Package: SOT-23


 CJ2333 substitution

   - MOSFET ⓘ Cross-Reference Search



CJ2333 Datasheet (PDF)

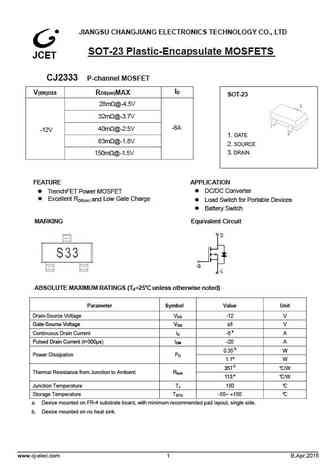

 ..1. Size:1004K  jiangsu
 cj2333.pdf pdf_icon

CJ2333

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD Plastic-Encapsulate MOSFETS CJ -channel MOSFET ID V(BR)DSS RDS(on)MAX SOT-23 28m@-4.5V 32m@-3.7V -6A 40m@-2.5V -12V 1. GATE 63m@-1.8V 2. SOURCE 3. DRAIN 150m@-1.5V FEATURE APPLICATION TrenchFET Power MOSFET DC/DC Converter Excellent RDS(on) Low Gate Chargeand

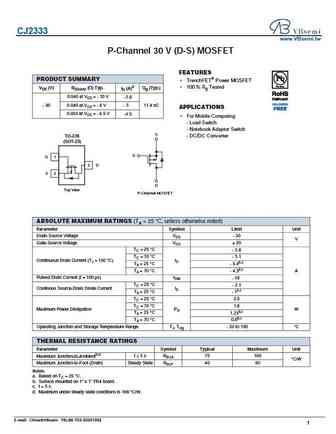

 ..2. Size:871K  cn vbsemi
 cj2333.pdf pdf_icon

CJ2333

CJ2333www.VBsemi.twP-Channel 30 V (D-S) MOSFETFEATURESPRODUCT SUMMARY TrenchFET Power MOSFET 100 % Rg TestedVDS (V) RDS(on) () Typ.ID (A)a Qg (Typ.)0.046 at VGS = - 10 V - 5.60.049 at VGS = - 6 V - 5 11.4 nC- 30APPLICATIONS0.054 at VGS = - 4.5 V -4.5 For Mobile Computing- Load Switch- Notebook Adaptor SwitchSTO-236- DC/DC Converter(SOT-23)
