All MOSFET. AT14N15S Datasheet



AT14N15S Datasheet and Replacement


   Type Designator: AT14N15S
   Marking Code: T14N15S
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel
   Pd ⓘ - Maximum Power Dissipation: 320 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 150 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
   |Vgs(th)|ⓘ - Maximum Gate-Threshold Voltage: 4 V
   |Id| ⓘ - Maximum Drain Current: 140 A
   Tj ⓘ - Maximum Junction Temperature: 150 °C
   Qg ⓘ - Total Gate Charge: 80 nC
   tr ⓘ - Rise Time: 36 nS
   Cossⓘ - Output Capacitance: 690 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.0062 Ohm
   Package: TO-220AB


 AT14N15S substitution

   - MOSFET ⓘ Cross-Reference Search



AT14N15S Datasheet (PDF)

 ..1. Size:1189K  anbon
 at14n15s.pdf pdf_icon

AT14N15S

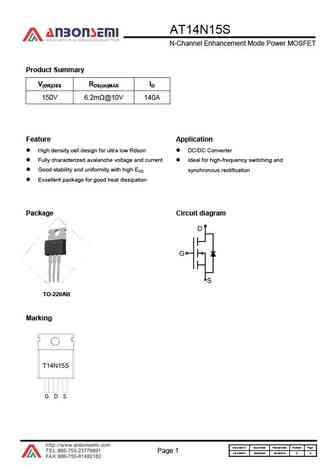

AT14N15S N-Channel Enhancement Mode Power MOSFETProduct Summary V(BR)DSS RDS(on)MAX ID 150V 6.2m@10V 140A Feature Application High density cell design for ultra low Rdson DC/DC Converter Fully characterized avalanche voltage and current Ideal for high-frequency switching and Good stability and uniformity with high EAS synchronous rectification Excellent package for good
