SLF16N50S Datasheet. Specs and Replacement
Type Designator: SLF16N50S 📄📄
Type of Transistor: MOSFET
Type of Control Channel: N-Channel
Absolute Maximum Ratings
Pd ⓘ - Maximum Power Dissipation: 29.8 W
|Vds|ⓘ - Maximum Drain-Source Voltage: 500 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 30 V
|Id| ⓘ - Maximum Drain Current: 16 A
Tj ⓘ - Maximum Junction Temperature: 150 °C
Electrical Characteristics
tr ⓘ - Rise Time: 45 nS
Cossⓘ - Output Capacitance: 247 pF
RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.4 Ohm
Package: TO220F
SLF16N50S substitution
- MOSFET ⓘ Cross-Reference Search
SLF16N50S datasheet
slp16n50s slf16n50s.pdf
SLP16N50S / SLF16N50S 500V N-Channel MOSFET General Description Features This Power MOSFET is produced using Maple semi s - 16A, 500V, RDS(on) = 280m @VGS = 10 V advanced planar stripe DMOS technology. - Low gate charge ( typical 31nC) This advanced technology has been especially tailored - Low Crss ( typical 6.8pF) to minimize on-state resistance, provide superior switching - High rug... See More ⇒
slp16n50c slf16n50c.pdf
SLP16N50C / SLF16N50C 500V N-Channel MOSFET General Description Features This Power MOSFET is produced using Maple semi s - 16A, 500V, RDS(on)typ. = 305m @VGS = 10 V advanced planar stripe DMOS technology. - Low gate charge ( typical 52nC) This advanced technology has been especially tailored - High ruggedness to minimize on-state resistance, provide superior switching - Fast switching... See More ⇒

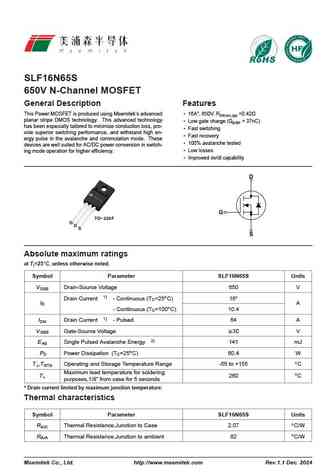

slf16n65s.pdf
SLF16N65S 650V N-Channel MOSFET General Description Features This Power MOSFET is produced using Msemitek s advanced 16A*, 650V, RDS(on),typ =0.42 planar stripe DMOS technology. This advanced technology Low gate charge (Qg,typ = 37nC) has been especially tailored to minimize conduction loss, pro- Fast switching vide superior switching performance, and withstand high en- ... See More ⇒
Detailed specifications: SLF12N65C, SLP13N50A, SLF13N50A, SLP13N50C, SLF13N50C, SLP16N50C, SLF16N50C, SLP16N50S, IRFZ44, SLP18N50C, SLF18N50C, SLP20N50C, SLF20N50C, SLP2N65UZ, SLF2N65UZ, SLP32N20C, SLF32N20C
