LP2501DT1G Specs and Replacement

Type Designator: LP2501DT1G

Type of Transistor: MOSFET

Type of Control Channel: P-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 0.7 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 20 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 8 V

|Id| ⓘ - Maximum Drain Current: 4 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 30 nS

Cossⓘ - Output Capacitance: 46 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.11 Ohm

Package: DFN2020-6S

LP2501DT1G substitution

- MOSFET ⓘ Cross-Reference Search



LP2501DT1G datasheet

 ..1. Size:1034K  lrc
 lp2501dt1g.pdf pdf_icon

LP2501DT1G

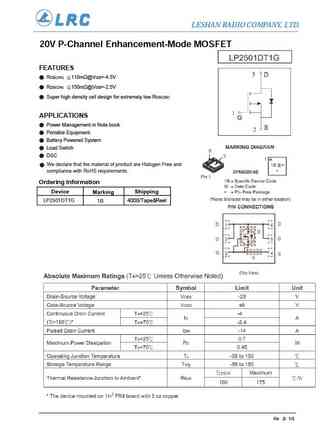

LESHAN RADIO COMPANY, LTD. 20V P-Channel Enhancement-Mode MOSFET FEATURES RDS(ON) 110m @VGS=-4.5V RDS(ON) 150m @VGS=-2.5V Super high density cell design for extremely low RDS(ON) APPLICATIONS Power Management in Note book Portable Equipment Battery Powered System Load Switch DSC We declare that the material of product are Halogen... See More ⇒

 9.1. Size:148K  international rectifier
 irlp2505.pdf pdf_icon

LP2501DT1G

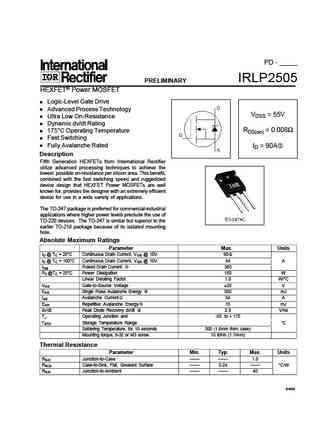

PD - _____ IRLP2505 PRELIMINARY HEXFET Power MOSFET Logic-Level Gate Drive Advanced Process Technology VDSS = 55V Ultra Low On-Resistance Dynamic dv/dt Rating RDS(on) = 0.008 175 C Operating Temperature Fast Switching Fully Avalanche Rated ID = 90A Description Fifth Generation HEXFETs from International Rectifier utilize advanced processing techniques to achieve the lowes... See More ⇒
