   Type Designator: NX6020CAKS
   Type of Transistor: MOSFET
   Type of Control Channel: NP -Channel
   Pd ⓘ - Maximum Power Dissipation: 0.22 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 60 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
   |Id| ⓘ - Maximum Drain Current: 0.17 A
   Tj ⓘ - Maximum Junction Temperature: 150 °C
   tr ⓘ - Rise Time: 7 nS
   Cossⓘ - Output Capacitance: 3.4 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 4.5 Ohm
   Package: SOT363


 NX6020CAKS substitution

   - MOSFET ⓘ Cross-Reference Search

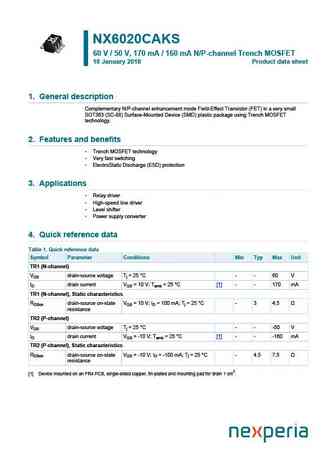

NX6020CAKS Datasheet (PDF)

 ..1. Size:308K  nxp
 nx6020caks.pdf pdf_icon

NX6020CAKS

NX6020CAKS60 V / 50 V, 170 mA / 160 mA N/P-channel Trench MOSFET18 January 2018 Product data sheet1. General descriptionComplementary N/P-channel enhancement mode Field-Effect Transistor (FET) in a very smallSOT363 (SC-88) Surface-Mounted Device (SMD) plastic package using Trench MOSFETtechnology.2. Features and benefits Trench MOSFET technology Very fast switching
