All MOSFET. PTP01N04N Datasheet



PTP01N04N Datasheet and Replacement


   Type Designator: PTP01N04N
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel
   Pd ⓘ - Maximum Power Dissipation: 375 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 40 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
   |Id| ⓘ - Maximum Drain Current: 345 A
   Tj ⓘ - Maximum Junction Temperature: 175 °C
   tr ⓘ - Rise Time: 30 nS
   Cossⓘ - Output Capacitance: 1600 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.0015 Ohm
   Package: TO-220


 PTP01N04N substitution

   - MOSFET ⓘ Cross-Reference Search



PTP01N04N Datasheet (PDF)

 ..1. Size:526K  pipsemi
 ptp01n04n.pdf pdf_icon

PTP01N04N

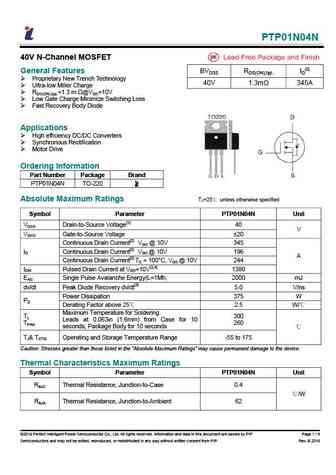

PTP01N04N 40V N-Channel MOSFET General Features BVDSS RDS(ON),typ. ID[2] Proprietary New Trench Technology 40V 1.3m 345A Ultra-low Miller Charge RDS(ON),typ.=1.3 m @VGS=10V Low Gate Charge Minimize Switching Loss Fast Recovery Body Diode Applications High efficiency DC/DC Converters Synchronous Rectification Motor Drive Ordering Information Part Number
