MOSFET. Datasheet pdf. Equivalent
Type Designator: 7240
Type of Transistor: MOSFET
Type of Control Channel: N
-Channel
Pdⓘ
- Maximum Power Dissipation: 36.7
W
|Vds|ⓘ - Maximum Drain-Source Voltage: 40
V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 20
V
|Vgs(th)|ⓘ - Maximum Gate-Threshold Voltage: 2.4
V
|Id|ⓘ - Maximum Drain Current: 40
A
Tjⓘ - Maximum Junction Temperature: 150
°C
Qgⓘ - Total Gate Charge: 27.8
nC
trⓘ - Rise Time: 3
nS
Cossⓘ -
Output Capacitance: 521
pF
Rdsⓘ - Maximum Drain-Source On-State Resistance: 0.0055
Ohm
Package:
PDFN5X6-8L
7240
Transistor Equivalent Substitute - MOSFET Cross-Reference Search
7240
Datasheet (PDF)

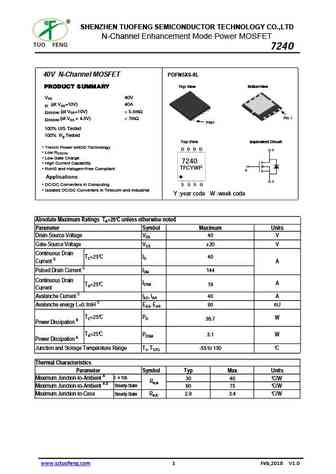

..1. Size:3334K cn tuofeng
7240.pdf
SHENZHEN TUOFENG SEMICONDUCTOR TECHNOLOGY CO.,LTDN-Channel Enhancement Mode Power MOSFET 724040V N-Channel MOSFET PDFN5X6-8LTop View Bottom ViewPRODUCT SUMMARYVDS40V40A ID (at VGS=10V)
