AP4910GD Datasheet. Specs and Replacement

Type Designator: AP4910GD  📄📄

Type of Transistor: MOSFET

Type of Control Channel: NP-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 45 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 40 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 30 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 14 nS

Cossⓘ - Output Capacitance: 110 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.016 Ohm

Package: PDFN5X6

  📄📄 Copy

AP4910GD substitution

- MOSFET ⓘ Cross-Reference Search

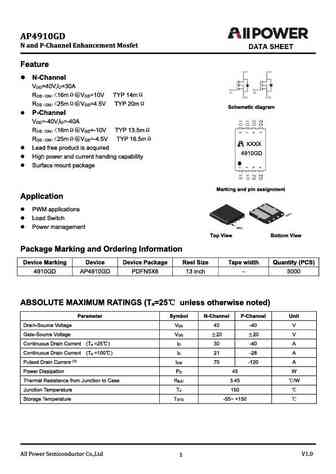

AP4910GD datasheet

 ..1. Size:1546K  1
 ap4910gd.pdf pdf_icon

AP4910GD

... See More ⇒

 ..2. Size:1546K  allpower
 ap4910gd.pdf pdf_icon

AP4910GD

... See More ⇒
