All MOSFET. AOT095A60L Datasheet



AOT095A60L Datasheet and Replacement


   Type Designator: AOT095A60L
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel
   Pd ⓘ - Maximum Power Dissipation: 378 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 600 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
   |Id| ⓘ - Maximum Drain Current: 38 A
   Tj ⓘ - Maximum Junction Temperature: 150 °C
   tr ⓘ - Rise Time: 50 nS
   Cossⓘ - Output Capacitance: 105 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.095 Ohm
   Package: TO220


 AOT095A60L substitution

   - MOSFET ⓘ Cross-Reference Search



AOT095A60L Datasheet (PDF)

 ..1. Size:499K  aosemi
 aot095a60l.pdf pdf_icon

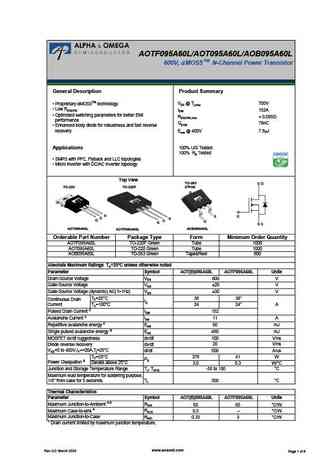

AOT095A60L

AOTF095A60L/AOT095A60L/AOB095A60LTM 600V, a MOS5 N-Channel Power TransistorGeneral Description Product Summary VDS @ Tj,max 700V Proprietary MOS5TM technology Low RDS(ON) IDM 152A Optimized switching parameters for better EMI RDS(ON),max

 5.1. Size:451K  aosemi
 aot095a60fdl.pdf pdf_icon

AOT095A60L

AOT095A60FDLTM 600V, a MOS5 N-Channel Power TransistorGeneral Description Product Summary VDS @ Tj,max 700V Proprietary MOS5TM technology Low RDS(ON) IDM 120A Optimized switching parameters for better EMI RDS(ON),max
