AOD780A70 Specs and Replacement

Type Designator: AOD780A70

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 83 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 700 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 7 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 9 nS

Cossⓘ - Output Capacitance: 18 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.78 Ohm

Package: TO252

AOD780A70 substitution

- MOSFET ⓘ Cross-Reference Search



AOD780A70 datasheet

 ..1. Size:513K  aosemi
 aod780a70.pdf pdf_icon

AOD780A70

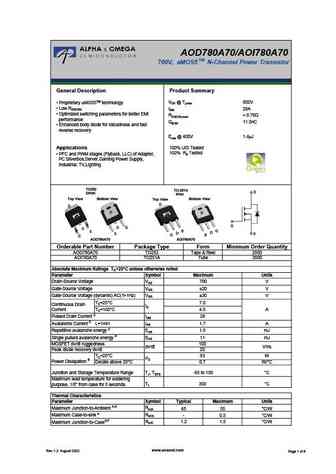

AOD780A70/AOI780A70 TM 700V, aMOS5 N-Channel Power Transistor General Description Product Summary VDS @ Tj,max 800V Proprietary aMOS5TM technology Low RDS(ON) IDM 28A Optimized switching parameters for better EMI RDS(ON),max ... See More ⇒

 ..2. Size:513K  aosemi
 aod780a70 aoi780a70.pdf pdf_icon

AOD780A70

AOD780A70/AOI780A70 TM 700V, aMOS5 N-Channel Power Transistor General Description Product Summary VDS @ Tj,max 800V Proprietary aMOS5TM technology Low RDS(ON) IDM 28A Optimized switching parameters for better EMI RDS(ON),max ... See More ⇒
