FXN23S65F Datasheet. Specs and Replacement

Type Designator: FXN23S65F  📄📄

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 49 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 650 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 30 V

|Id| ⓘ - Maximum Drain Current: 17 A

Tj ⓘ - Maximum Junction Temperature: 175 °C

Electrical Characteristics

tr ⓘ - Rise Time: 78 nS

Cossⓘ - Output Capacitance: 75 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.12 Ohm

Package: TO220F

  📄📄 Copy

FXN23S65F substitution

- MOSFET ⓘ Cross-Reference Search

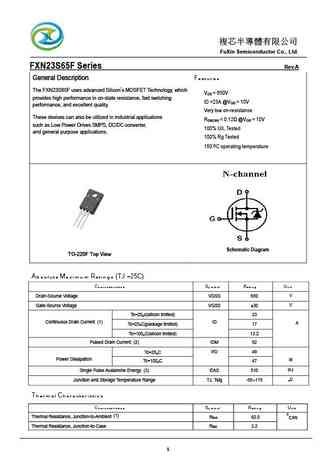

FXN23S65F datasheet

 ..1. Size:680K  cn fx-semi
 fxn23s65f.pdf pdf_icon

FXN23S65F

FuXin Semiconductor Co., Ltd. FXN23S65F Series Rev.A General Description Features The FXN23S65F uses advanced Silicon s MOSFET Technology, which V = 650V DS provides high performance in on-state resistance, fast switching ID =23A @V = 10V GS performance, and excellent quality. Very low on-resistance These devices can also be utilized in indu... See More ⇒
