D2N60 Datasheet and Replacement

D2N602A 600V N-channel Enhancement Mode Power MOSFET1 DescriptionThese N-channel enhanced vdmosfets, is obtained by the self-alignedVDSS = 600Vplanar technology which reduce the conduction loss, improve switchingI = 2.0ADperformance and enhance the avalanche energy. Which accords with theRoHS standard.RDS(on)TYP)=3.6 Fast switching ESD improved capabilit

Philips Semiconductors Product specification PowerMOS transistors PHP2N60E, PHB2N60E, PHD2N60E Avalanche energy ratedFEATURES SYMBOL QUICK REFERENCE DATAd Repetitive Avalanche Rated Fast switching VDSS = 600 V Stable off-state characteristics High thermal cycling performance ID = 1.9 Ag Low thermal resistanceRDS(ON) 6 sGENERAL DESCRIPTIONN-chan

January 2009QFETFQD2N60C/FQU2N60C 600V N-Channel MOSFETFeatures Description 1.9A, 600V, RDS(on) = 4.7 @VGS = 10 V These N-Channel enhancement mode power field effect transis-tors are produced using Fairchilds proprietary, planar stripe, Low gate charge (typical 8.5 nC)DMOS technology. Low Crss (typical 4.3 pF)This advanced technology has been especially tail

April 2000TMQFETQFETQFETQFETFQD2N60 / FQU2N60600V N-Channel MOSFETGeneral Description FeaturesThese N-Channel enhancement mode power field effect 2.0A, 600V, RDS(on) = 4.7 @VGS = 10 Vtransistors are produced using Fairchilds proprietary, Low gate charge ( typical 9.0 nC)planar stripe, DMOS technology. Low Crss ( typical 5.0 pF)This advanced technology

November 2013FQD2N60C / FQU2N60CN-Channel QFET MOSFET600 V, 1.9 A, 4.7 Features Description 1.9 A, 600 V, RDS(on) = 4.7 (Max.) @ VGS = 10 V, This N-Channel enhancement mode power MOSFET is ID = 0.95 Aproduced using Fairchild Semiconductors proprietary Low Gate Charge (Typ. 8.5 nC)planar stripe and DMOS technology. This advanced Low Crss (Typ. 4.3 pF)

TMQFETFQD2N60C / FQU2N60C600V N-Channel MOSFETGeneral Description FeaturesThese N-Channel enhancement mode power field effect 1.9A, 600V, RDS(on) = 4.7 @VGS = 10 Vtransistors are produced using Fairchilds proprietary, Low gate charge ( typical 8.5 nC)planar stripe, DMOS technology. Low Crss ( typical 4.3 pF)This advanced technology has been especially tailored

SEMICONDUCTOR KMB8D2N60QATECHNICAL DATA N-Ch Trench MOSFETGENERAL DESCRIPTIONThis Trench MOSFET has better characteristics, such as fast switching time, lowon resistance, low gate charge and excellent avalanche characteristiscs. It is mainlysuitable for Back-light Inverter. HTD PG LFEATURES VDSS=60V, ID=8.2A.ADrain-Source ON Resistance.DIM MILLIMETERSA _+RDS(ON)=

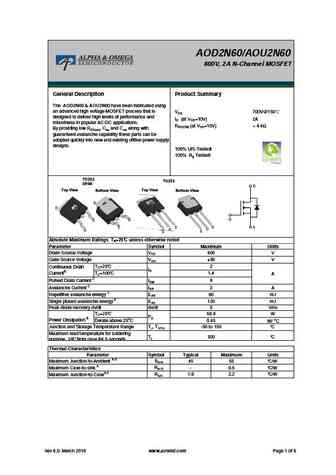

AOD2N60/AOU2N60600V, 2A N-Channel MOSFETGeneral Description Product SummaryThe AOD2N60 & AOU2N60 have been fabricated usingan advanced high voltage MOSFET process that isVDS 700V@150designed to deliver high levels of performance and ID (at VGS=10V) 2Arobustness in popular AC-DC applications. RDS(ON) (at VGS=10V)

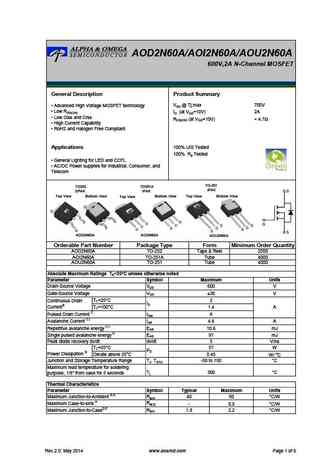

AOD2N60A/AOI2N60A/AOU2N60A600V,2A N-Channel MOSFETGeneral Description Product Summary VDS @ Tj,max 700V Advanced High Voltage MOSFET technology Low RDS(ON) ID (at VGS=10V) 2A Low Ciss and Crss RDS(ON) (at VGS=10V)

BRD2N60 Rev.D May.-2016 DATA SHEET / Descriptions TO-252 N MOS N-CHANNEL MOSFET in a TO-252 Plastic Package. / Features ,,Low gate charge, low crss, fast switching. / Applications DC/DC These devices are well suited for high efficiency

SVD2N60M/F/T/D_Datasheet 2A, 600V N-CHANNEL MOSFET GENERAL DESCRIPTION SVD2N60M/F/T/D is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary S-RinTM structure VDMOS technology. The improved planar stripe cell and the improved guard ring terminal have been especially tailored to minimize on-state resistance, provide superior s

MDD2N60/MDI2N60 N-Channel MOSFET 600V, 1.9A, 4.5 General Description Features These N-channel MOSFET are produced using advanced V = 600V DSMagnaChips MOSFET Technology, which provides low on- I = 1.9A @ V = 10V D GSstate resistance, high switching performance and excellent R 4.5 @ V = 10V DS(ON) GSquality. Applications These devices are suitable device for

MSD2N60 N-Channel Logic Level Enhancement Mode Power MOSFET Description The MSD2N60 is a N-channel enhancement-mode MOSFET , providing the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost effectiveness. The TO-252 package is universally preferred for all commercial-industrial applications Features Originative Ne

WFD2N60WFD2N60WFD2N60WFD2N60Silicon N-Channel MOSFETSilicon N-Channel MOSFETSilicon N-Channel MOSFETSilicon N-Channel MOSFETFeatures 2A,600V,R (Max 5.0)@V =10VDS(on) GS Ultra-low Gate Charge(Typical 15.3nC) Fast Switching Capability 100%Avalanche Tested Maximum Junction Temperature Range(150)General DescriptionThis Power MOSFET is produced us

WFD2N60BWFD2N60BWFD2N60BWFD2N60BSilicon N-Channel MOSFETSilicon N-Channel MOSFETSilicon N-Channel MOSFETSilicon N-Channel MOSFETFeatures 2A,600V,R (Max 5.0)@V =10VDS(on) GS Ultra-low Gate Charge(Typical 9nC) Fast Switching Capability 100%Avalanche Tested Maximum Junction Temperature Range(150)General DescriptionThis Power MOSFET is produced u

N N-CHANNEL MOSFET FHF2N60E/FHP2N60E/FHU2N60E/FHD2N60E MAIN CHARACTERISTICS FEATURES ID 2A Low gate charge VDSS 600V Crss ( 6pF) Low Crss (typical 6pF ) Rdson-typ @Vgs=10V 4.0 Fast switching Qg-typ 8.0nC 100% 100% avalanche tested dv/

N N-CHANNEL MOSFET FHF2N60A/FHP2N60A/FHU2N60A/FHD2N60A MAIN CHARACTERISTICS FEATURES ID 2A Low gate charge VDSS 600V Crss ( 6pF) Low Crss (typical 6pF ) Rdson-typ @Vgs=10V 3.5 Fast switching Qg-typ 8.0nC 100% 100% avalanche tested dv/

SW2N60DC N-channel Enhanced mode TO-252/TO-251 MOSFET BVDSS :600V Features TO-252 TO-251 ID : 2A High ruggedness RDS(ON) : 3.9 Low RDS(ON) (Typ 3.9)@VGS=10V Low Gate Charge (Typ9.5nC) Improved dv/dt Capability 1 100% Avalanche Tested 2 2 1 3 2 Application:Charger,Adaptor,LED 3 1 1. Gate 2. Drain 3. Source 3 General Descripti

June 2015BVDSS = 600 VRDS(on) typ = 4 HFD2N60U / HFU2N60U ID = 1.8 A600V N-Channel MOSFETD-PAK I-PAKFEATURES21 Originative New Design13 23 Superior Avalanche Rugged TechnologyHFD2N60U HFU2N60U Robust Gate Oxide Technology 1.Gate 2. Drain 3. Source Very Low Intrinsic Capacitances Excellent Switching Characteristics Unrivalled Gate Charge : 5.5 nC (T

Jan 2014BVDSS = 600 VRDS(on) typ = 4 HFD2N60U / HFU2N60U ID = 1.8 A600V N-Channel MOSFETD-PAK I-PAKFEATURES21 Originative New Design13 23 Superior Avalanche Rugged TechnologyHFD2N60U HFU2N60U Robust Gate Oxide Technology 1.Gate 2. Drain 3. Source Very Low Intrinsic Capacitances Excellent Switching Characteristics Unrivalled Gate Charge : 5.5 nC (Ty

March 2014BVDSS = 600 VRDS(on) typ HFD2N60S / HFU2N60SID = 1.9 A600V N-Channel MOSFETD-PAK I-PAK2FEATURES113 23 Originative New DesignHFD2N60S HFU2N60S Superior Avalanche Rugged Technology1.Gate 2. Drain 3. Source Robust Gate Oxide Technology Very Low Intrinsic Capacitances Excellent Switching Characteristics Unrivalled Gate Charge : 6.0 nC

July 2005BVDSS = 600 VRDS(on) typ HFD2N60 / HFU2N60ID = 1.8 A600V N-Channel MOSFETD-PAK I-PAK2FEATURES113 23 Originative New DesignHFD2N60 HFU2N60 Superior Avalanche Rugged Technology1.Gate 2. Drain 3. Source Robust Gate Oxide Technology Very Low Intrinsic Capacitances Excellent Switching Characteristics Unrivalled Gate Charge : 9.0 nC (Typ

May 2017 HFU2N60F / HFD2N60F 600V N-Channel MOSFET Features Key Parameters Parameter Value Unit Originative New Design BVDSS 600 V Very Low Intrinsic Capacitances ID 2 A Excellent Switching Characteristics RDS(on), Typ 3.6 100% Avalanche Tested Qg, Typ 6.5 nC RoHS Compliant HFU2N60F HFD2N60F Symbol TO-251 TO-252 D S S G D G Ab

March 2014BVDSS = 600 VRDS(on) typ HFD2N60S / HFU2N60SID = 1.9 A600V N-Channel MOSFETD-PAK I-PAK2FEATURES113 23 Originative New DesignHFD2N60S HFU2N60S Superior Avalanche Rugged Technology1.Gate 2. Drain 3. Source Robust Gate Oxide Technology Very Low Intrinsic Capacitances Excellent Switching Characteristics Unrivalled Gate Charge : 6.0 nC

TMD2N60Z(G)/TMU2N60Z(G) N-channel MOSFET Features BVDSS ID RDS(on)MAX Low gate charge 600V 2A

TMD2N60AZ(G)/TMU2N60AZ(G) N-channel MOSFET Features Low gate charge BVDSS ID RDS(on) 100% avalanche tested 600V 2.0A

LND2N60/LNC2N60/LNG2N60/LNH2N60Lonten N-channel 600V, 2A Power MOSFETDescription Product SummaryThe Power MOSFET is fabricated using the V 600VDSSadvanced planer VDMOS technology. The I 2ADresulting device has low conduction resistance, R 4.5DS(on),maxsuperior switching performance and high avalance Q 10.2 nCg,typenergy.Features Low RDS(on) Low gate charge

FQD2N60Cwww.VBsemi.twN-Channel 650 V (D-S) MOSFETFEATURESPRODUCT SUMMARY Low Gate Charge Qg Results in Simple DriveVDS (V) 650AvailableRequirementRDS(on) ()VGS = 10 V 3.8RoHS Improved Gate, Avalanche and Dynamic dV/dtQg (Max.) (nC) 15RuggednessQgs (nC) 3 Fully Characterized Capacitance and Avalanche Voltageand CurrentQgd (nC) 6 Compliant to RoHS

TMA2N60H,TMD2N60H,TMT2N60H,TMU2N60H Wuxi Unigroup Microelectronics CompanyWuxi Unigroup Microelectronics Company 600V N-Channel MOSFET FEATURES Fast switching 100% avalanche tested Improved dv/dt capability APPLICATIONS Switch Mode Power Supply (SMPS) Uninterruptible Power Supply (UPS) Power Factor Correction (PFC) Device Marking and Package Info

isc N-Channel MOSFET Transistor AOD2N60FEATURESDrain Current I = 2A@ T =25D CDrain Source Voltage-: V =600V(Min)DSSStatic Drain-Source On-Resistance: R =4.4(Max)DS(on)100% avalanche testedMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationDESCRIPTIONDesigned for use in switch mode power supplies and generalpurpose a

isc N-Channel MOSFET Transistor AOD2N60AFEATURESDrain Current I = 2A@ T =25D CDrain Source Voltage-: V =600V(Min)DSSStatic Drain-Source On-Resistance: R =4.7(Max)DS(on)100% avalanche testedMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationDESCRIPTIONDesigned for use in switch mode power supplies and generalpurpose
