JMPF25N50BJ Datasheet and Replacement


   Type Designator: JMPF25N50BJ
   Marking Code: F25N50BJ
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel
   Pd ⓘ - Maximum Power Dissipation: 33 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 500 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 30 V
   |Vgs(th)|ⓘ - Maximum Gate-Threshold Voltage: 4 V
   |Id| ⓘ - Maximum Drain Current: 16 A
   Tj ⓘ - Maximum Junction Temperature: 150 °C
   Qg ⓘ - Total Gate Charge: 69 nC
   tr ⓘ - Rise Time: 68 nS
   Cossⓘ - Output Capacitance: 305 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.3 Ohm
   Package: TO220F


 JMPF25N50BJ substitution

   - MOSFET ⓘ Cross-Reference Search



JMPF25N50BJ Datasheet (PDF)

 ..1. Size:1001K  jiejie micro
 jmpf25n50bj.pdf pdf_icon

JMPF25N50BJ

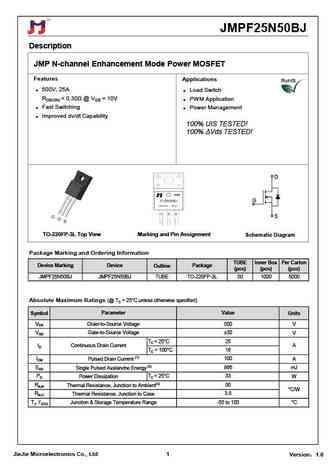

JMPF25N50BJDescriptionJMP N-channel Enhancement Mode Power MOSFETFeaturesApplications 500V, 25A Load SwitchRDS(ON)

 9.1. Size:1002K  jiejie micro
 jmpf20n60bj.pdf pdf_icon

JMPF25N50BJ

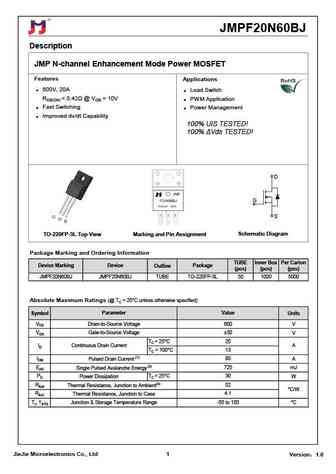

JMPF20N60BJDescriptionJMP N-channel Enhancement Mode Power MOSFETFeaturesApplications 600V, 20A Load SwitchRDS(ON)

 9.2. Size:385K  jiejie micro
 jmpf20n65bj.pdf pdf_icon

JMPF25N50BJ

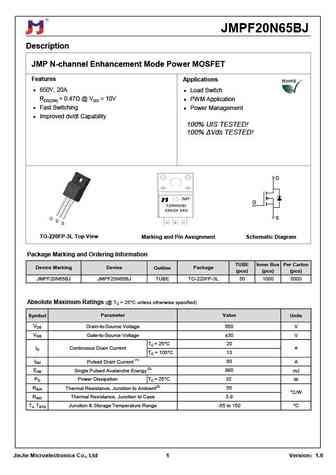

JMPF20N65BJDescriptionJMP N-channel Enhancement Mode Power MOSFETFeaturesApplications 650V, 20A Load SwitchRDS(ON)
