All MOSFET. JMPL1050APD Datasheet



JMPL1050APD Datasheet and Replacement


   Type Designator: JMPL1050APD
   Type of Transistor: MOSFET
   Type of Control Channel: P -Channel
   Pd ⓘ - Maximum Power Dissipation: 4.2 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 100 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
   |Id| ⓘ - Maximum Drain Current: 6.6 A
   Tj ⓘ - Maximum Junction Temperature: 150 °C
   tr ⓘ - Rise Time: 56 nS
   Cossⓘ - Output Capacitance: 222 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.05 Ohm
   Package: SOP8


 JMPL1050APD substitution

   - MOSFET ⓘ Cross-Reference Search



JMPL1050APD Datasheet (PDF)

 ..1. Size:365K  jiejie micro
 jmpl1050apd.pdf pdf_icon

JMPL1050APD

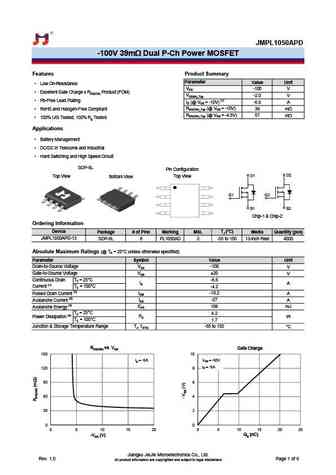

JMPL1050APD-100V 39mDual P-Ch Power MOSFETFeatures Product SummaryParameter Value Unit Low On-Resistance VDS-100 V Excellent Gate Charge x RDS(ON) Product (FOM) VGS(th)_Typ-2.0 V Pb-Free Lead Plating ID (@ VGS = -10V) (1) -6.6 A RDS(ON)_Typ (@ VGS = -10V)39 RoHS and Halogen-Free Compliant m RDS(ON)_Typ (@ VGS = -4.5V)57 m 100% UIS Tes

 4.1. Size:376K  jiejie micro
 jmpl1050ap.pdf pdf_icon

JMPL1050APD

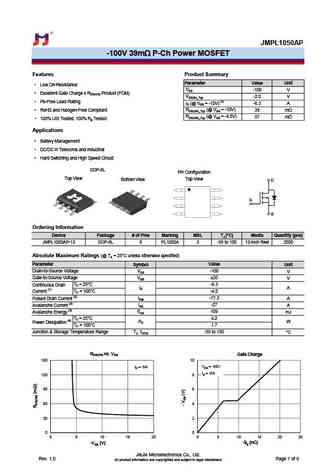

JMPL1050AP-100V 39m P-Ch Power MOSFETFeatures Product SummaryParameter Value Unit Low On-Resistance VDS-100 V Excellent Gate Charge x RDS(ON) Product (FOM) VGS(th)_Typ-2.0 V Pb-Free Lead Plating ID (@ VGS = -10V) (1) -6.3 A RoHS and Halogen-Free Compliant RDS(ON)_Typ (@ VGS = -10V)39 m RDS(ON)_Typ (@ VGS = -4.5V)57 m 100% UIS Tested, 100%

 5.1. Size:356K  jiejie micro
 jmpl1050ak.pdf pdf_icon

JMPL1050APD

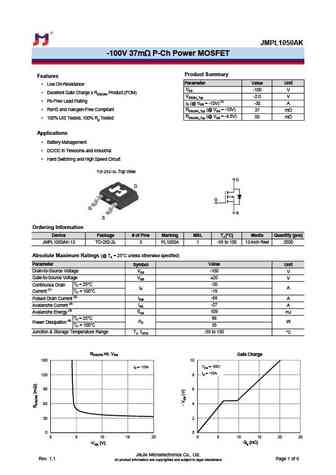

JMPL1050AK-100V 37m P-Ch Power MOSFETProduct SummaryFeaturesParameter Value Unit Low On-Resistance VDS-100 V Excellent Gate Charge x RDS(ON) Product (FOM) VGS(th)_Typ-2.0 V Pb-Free Lead Plating ID (@ VGS = -10V) (1) -30 A RoHS and Halogen-Free Compliant RDS(ON)_Typ (@ VGS = -10V)37 m RDS(ON)_Typ (@ VGS = -4.5V)50 m 100% UIS Tested, 100%

 5.2. Size:348K  jiejie micro
 jmpl1050akq.pdf pdf_icon

JMPL1050APD

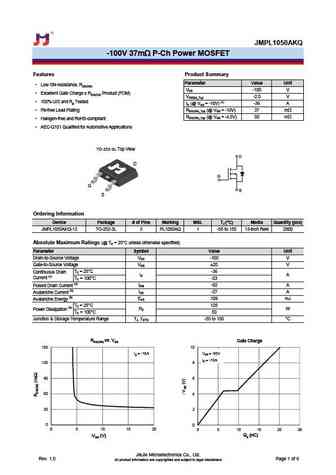

JMPL1050AKQ-100V 37m P-Ch Power MOSFETFeatures Product SummaryParameter Value Unit Low ON-resistance, RDS(ON) VDS-100 V Excellent Gate Charge x RDS(ON) Product (FOM) VGS(th)_Typ-2.0 V 100% UIS and Rg Tested ID (@ VGS = -10V) (1) -36 A Pb-free Lead Plating RDS(ON)_Typ (@ VGS = -10V)37 m RDS(ON)_Typ (@ VGS = -4.5V)50 m Halogen-free and RoHS-
