JMCL0410AGD Datasheet and Replacement
Type Designator: JMCL0410AGD
Type of Transistor: MOSFET
Type of Control Channel: NP -Channel
Pd ⓘ - Maximum Power Dissipation: 50 W
|Vds|ⓘ - Maximum Drain-Source Voltage: 40 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
|Id| ⓘ - Maximum Drain Current: 16 A
Tj ⓘ - Maximum Junction Temperature: 150 °C
tr ⓘ - Rise Time: 6(2) nS
Cossⓘ - Output Capacitance: 74(89) pF
Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.019(0.039) Ohm
Package: PDFN5X6-8L-D
JMCL0410AGD substitution
JMCL0410AGD Datasheet (PDF)

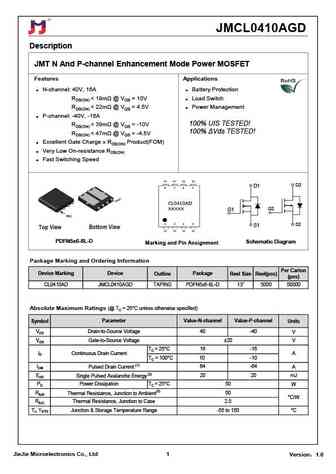

jmcl0410agd.pdf
JMCL0410AGDDescriptionJMT N And P-channel Enhancement Mode Power MOSFETFeatures Applications N-channel: 40V, 16A Battery ProtectionRDS(ON)

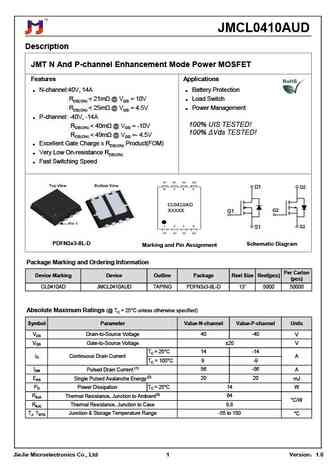

jmcl0410aud.pdf
JMCL0410AUDDescriptionJMT N And P-channel Enhancement Mode Power MOSFETFeatures Applications N-channel:40V, 14A Battery ProtectionRDS(ON)
