JMPC7N65BJ Datasheet. Specs and Replacement

Type Designator: JMPC7N65BJ  📄📄

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 114 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 650 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 30 V

|Id| ⓘ - Maximum Drain Current: 7 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 29 nS

Cossⓘ - Output Capacitance: 100 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 1.35 Ohm

Package: TO220

JMPC7N65BJ substitution

- MOSFET ⓘ Cross-Reference Search

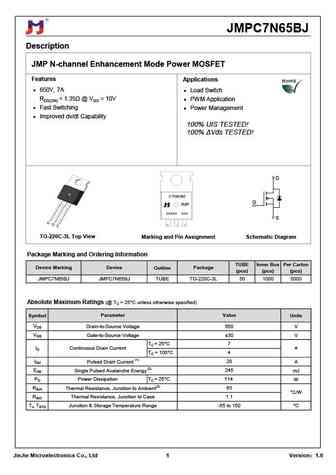

JMPC7N65BJ datasheet

 ..1. Size:432K  jiejie micro
 jmpc7n65bj.pdf pdf_icon

JMPC7N65BJ

JMPC7N65BJ Description JMP N-channel Enhancement Mode Power MOSFET Features Applications 650V, 7A Load Switch RDS(ON) ... See More ⇒
