All MOSFET. JMTC085P04A Datasheet



JMTC085P04A Datasheet and Replacement


   Type Designator: JMTC085P04A
   Type of Transistor: MOSFET
   Type of Control Channel: P -Channel
   Pd ⓘ - Maximum Power Dissipation: 108 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 40 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
   |Id| ⓘ - Maximum Drain Current: 70 A
   Tj ⓘ - Maximum Junction Temperature: 175 °C
   tr ⓘ - Rise Time: 88 nS
   Cossⓘ - Output Capacitance: 625 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.01 Ohm
   Package: TO220


 JMTC085P04A substitution

   - MOSFET ⓘ Cross-Reference Search



JMTC085P04A Datasheet (PDF)

 ..1. Size:427K  jiejie micro
 jmtc085p04a.pdf pdf_icon

JMTC085P04A

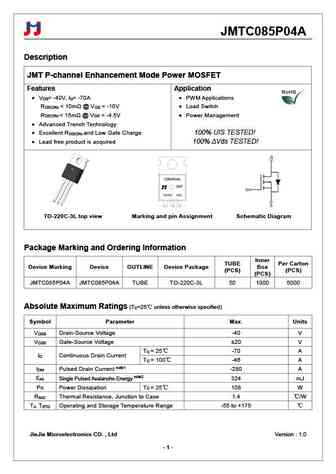

JMTC085P04ADescriptionJMT P-channel Enhancement Mode Power MOSFETFeatures Application V = -40V, I = -70A PWM ApplicationsDS DR

 9.1. Size:1247K  jiejie micro
 jmtc018n03a.pdf pdf_icon

JMTC085P04A

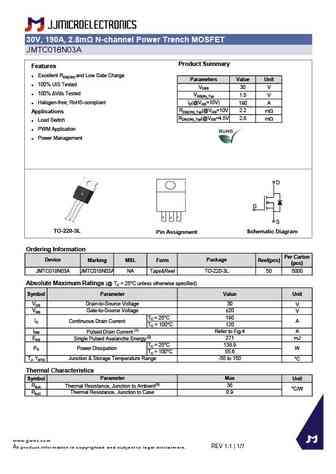

30V, 190A, 2.8m N-channel Power Trench MOSFETJMTC018N03AProduct SummaryFeatures Excellent RDS(ON) and Low Gate ChargeParameters Value Unit 100% UIS TestedVDSS 30 V 100% Vds TestedVGS(th)_Typ 1.5 V Halogen-free; RoHS-compliantID(@VGS=10V) 190 ARDS(ON)_Typ(@VGS=10V 2.2 mWApplicationsRDS(ON)_Typ(@VGS=4.5V 2.8 mW Load Switch PWM Application

 9.2. Size:1249K  jiejie micro
 jmtc060n06a.pdf pdf_icon

JMTC085P04A

60V, 120A, 4.2m N-channel Power Trench MOSFETJMTC060N06AProduct SummaryFeatures Excellent RDS(ON) and Low Gate ChargeParametersValue Unit 100% UIS TestedVDSS 60 V 100% Vds TestedVGS(th)_Typ 3.0 V Halogen-free; RoHS-compliantID(@VGS=10V) 120 ARDS(ON)_Typ(@VGS=10V 4.2 mWApplications Load Switch PWM Application Power ManagementDG S

 9.3. Size:1250K  jiejie micro
 jmtc035n04a.pdf pdf_icon

JMTC085P04A

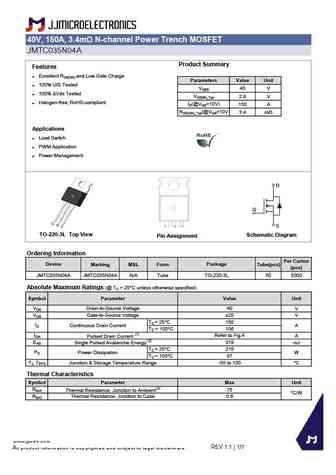

40V, 150A, 3.4m N-channel Power Trench MOSFETJMTC035N04AProduct SummaryFeatures Excellent RDS(ON) and Low Gate ChargeParametersValue Unit 100% UIS TestedVDSS 40 V 100% Vds TestedVGS(th)_Typ 2.8 V Halogen-free; RoHS-compliantID(@VGS=10V) 150 ARDS(ON)_Typ(@VGS=10V 3.4 mWApplications Load Switch PWM Application Power ManagementDG S
