All MOSFET. JMTC170N10A Datasheet



JMTC170N10A Datasheet and Replacement


   Type Designator: JMTC170N10A
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel
   Pd ⓘ - Maximum Power Dissipation: 139 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 100 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 25 V
   |Id| ⓘ - Maximum Drain Current: 59 A
   Tj ⓘ - Maximum Junction Temperature: 150 °C
   tr ⓘ - Rise Time: 29 nS
   Cossⓘ - Output Capacitance: 169 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.02 Ohm
   Package: TO220


 JMTC170N10A substitution

   - MOSFET ⓘ Cross-Reference Search



JMTC170N10A Datasheet (PDF)

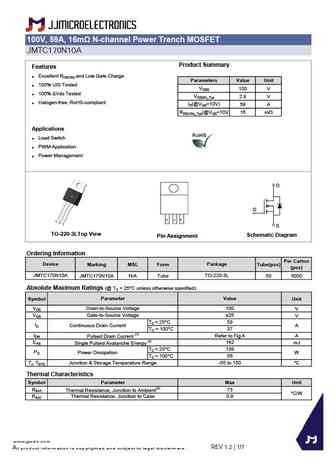

 ..1. Size:1270K  jiejie micro
 jmtc170n10a.pdf pdf_icon

JMTC170N10A

100V, 59A, 16m N-channel Power Trench MOSFETJMTC170N10AProduct SummaryFeatures Excellent RDS(ON) and Low Gate ChargeParametersValue Unit 100% UIS TestedVDSS 100 V 100% Vds TestedVGS(th)_Typ 2.8 V Halogen-free; RoHS-compliantID(@VGS=10V) 59 ARDS(ON)_Typ(@VGS=10V 16 mWApplications Load Switch PWM Application Power ManagementDG STO

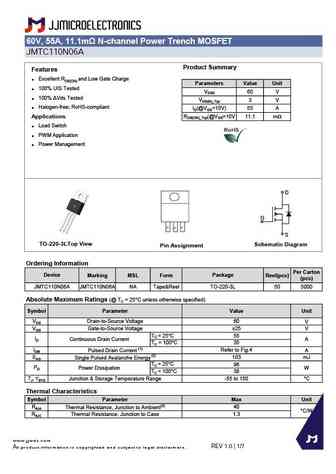

 9.1. Size:1267K  jiejie micro
 jmtc110n06a.pdf pdf_icon

JMTC170N10A

60V, 55A, 11.1m N-channel Power Trench MOSFETJMTC110N06AProduct SummaryFeatures Excellent RDS(ON) and Low Gate ChargeParameters Value Unit 100% UIS TestedVDSS 60 V 100% Vds TestedVGS(th)_Typ 3 V Halogen-free; RoHS-compliantID(@VGS=10V) 55 AApplications RDS(ON)_Typ(@VGS=10V 11.1 mW Load Switch PWM Application Power ManagementDG STO-2

Datasheet: JMTC018N03A , JMTC025N04D , JMTC035N04A , JMTC035N06D , JMTC060N06A , JMTC068N07A , JMTC085P04A , JMTC110N06A , 4N60 , JMTC3002B , JMTC3003A , JMTC3005A , JMTC320N10A , JMTC4004A , JMTC58N06B , JMTC60N04B , JMTC6888A .
