JMTC58N06B Datasheet. Specs and Replacement

Type Designator: JMTC58N06B

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 215 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 60 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 58 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 27 nS

Cossⓘ - Output Capacitance: 186 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.0108 Ohm

Package: TO220

JMTC58N06B substitution

- MOSFET ⓘ Cross-Reference Search



JMTC58N06B datasheet

 ..1. Size:1164K  jiejie micro
 jmtc58n06b.pdf pdf_icon

JMTC58N06B

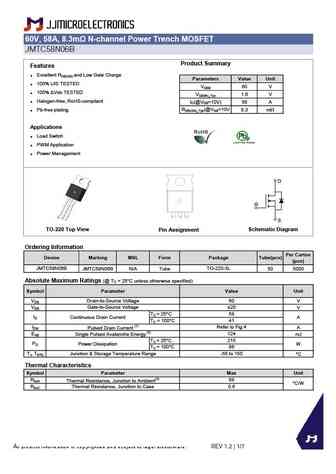

60V, 58A, 8.3m N-channel Power Trench MOSFET JMTC58N06B Product Summary Features Excellent RDS(ON) and Low Gate Charge Parameters Value Unit 100% UIS TESTED VDSS 60 V 100% Vds TESTED VGS(th)_Typ 1.6 V Halogen-free; RoHS-compliant ID(@VGS=10V) 58 A Pb-free plating RDS(ON)_Typ(@VGS=10V 8.3 mW Applications Load Switch PWM Application Power Manage... See More ⇒
