JMTC60N04B Datasheet and Replacement


   Type Designator: JMTC60N04B
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel
   Pd ⓘ - Maximum Power Dissipation: 47 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 40 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
   |Id| ⓘ - Maximum Drain Current: 60 A
   Tj ⓘ - Maximum Junction Temperature: 175 °C
   tr ⓘ - Rise Time: 12 nS
   Cossⓘ - Output Capacitance: 192 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.0077 Ohm
   Package: TO220


 JMTC60N04B substitution

   - MOSFET ⓘ Cross-Reference Search



JMTC60N04B Datasheet (PDF)

 ..1. Size:538K  jiejie micro

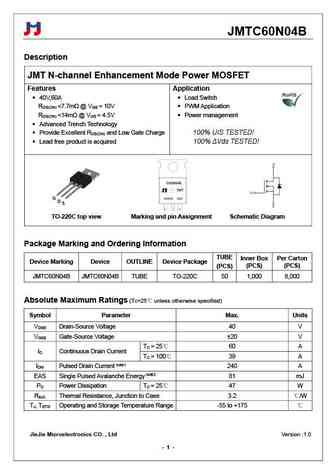

 jmtc60n04b.pdf pdf_icon

JMTC60N04B

JMTC60N04B Description JMT N-channel Enhancement Mode Power MOSFET Features Application 40V,60A Load Switch R

 9.1. Size:1151K  jiejie micro

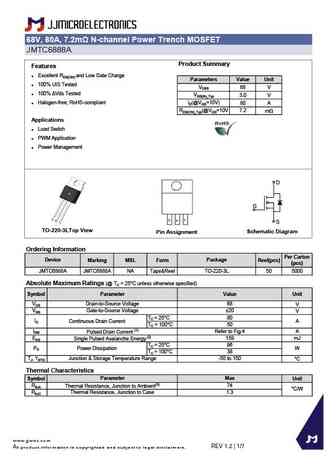

 jmtc6888a.pdf pdf_icon

JMTC60N04B

68V, 80A, 7.2m N-channel Power Trench MOSFETJMTC6888AProduct SummaryFeatures Excellent RDS(ON) and Low Gate ChargeParameters Value Unit 100% UIS TestedVDSS 68 V 100% Vds TestedVGS(th)_Typ 3.0 V Halogen-free; RoHS-compliantID(@VGS=10V) 80 ARDS(ON)_Typ(@VGS=10V 7.2 mWApplications Load Switch PWM Application Power ManagementDG STO-22

Datasheet: JMTC110N06A , JMTC170N10A , JMTC3002B , JMTC3003A , JMTC3005A , JMTC320N10A , JMTC4004A , JMTC58N06B , SI2302 , JMTC6888A , JMTC80N06A , JMTL3400A , JMTL3400L , JMTL3401B , JMTL3402A , JMTL3404A , JMTL3404B .
