JMTQ60N04B Datasheet. Specs and Replacement

Type Designator: JMTQ60N04B

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 114 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 40 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 40 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 28 nS

Cossⓘ - Output Capacitance: 167 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.0086 Ohm

Package: PDFN3X3-8L

JMTQ60N04B substitution

- MOSFET ⓘ Cross-Reference Search



JMTQ60N04B datasheet

 ..1. Size:480K  jiejie micro
 jmtq60n04b.pdf pdf_icon

JMTQ60N04B

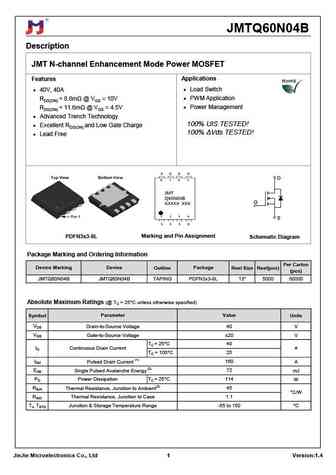

JMTQ60N04B Description JMT N-channel Enhancement Mode Power MOSFET Features Applications 40V, 40A Load Switch RDS(ON) ... See More ⇒
