JMTN11DN10A Datasheet and Replacement
Type Designator: JMTN11DN10A
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Pd ⓘ - Maximum Power Dissipation: 1.8 W
|Vds|ⓘ - Maximum Drain-Source Voltage: 100 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
|Id| ⓘ - Maximum Drain Current: 3 A
Tj ⓘ - Maximum Junction Temperature: 150 °C
tr ⓘ - Rise Time: 6 nS
Cossⓘ - Output Capacitance: 38 pF
Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.125 Ohm
Package: SOT89
JMTN11DN10A substitution

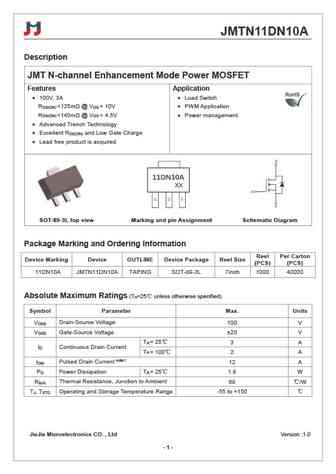

JMTN11DN10A Datasheet (PDF)
jmtn11dn10a.pdf
JMTN11DN10ADescriptionJMT N-channel Enhancement Mode Power MOSFETFeatures Application 100V, 3A Load SwitchR
