JMTQ200P03A Datasheet. Specs and Replacement

Type Designator: JMTQ200P03A

Marking Code: Q200P03A

Type of Transistor: MOSFET

Type of Control Channel: P-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 25 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 30 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 12 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

|VGSth|ⓘ - Maximum Gate-Threshold Voltage: 2.5 V

Qg ⓘ - Total Gate Charge: 23 nC

tr ⓘ - Rise Time: 3 nS

Cossⓘ - Output Capacitance: 166 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.0174 Ohm

Package: PDFN3X3-8L

JMTQ200P03A substitution

- MOSFET ⓘ Cross-Reference Search



JMTQ200P03A datasheet

 ..1. Size:1222K  jiejie micro
 jmtq200p03a.pdf pdf_icon

JMTQ200P03A

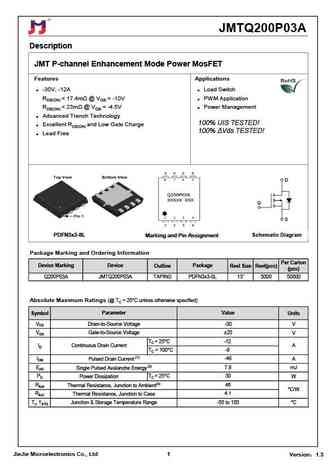

JMTQ200P03A Description JMT P-channel Enhancement Mode Power MosFET Features Applications -30V, -12A Load Switch RDS(ON) ... See More ⇒

 9.1. Size:793K  jiejie micro
 jmtq240c03d.pdf pdf_icon

JMTQ200P03A

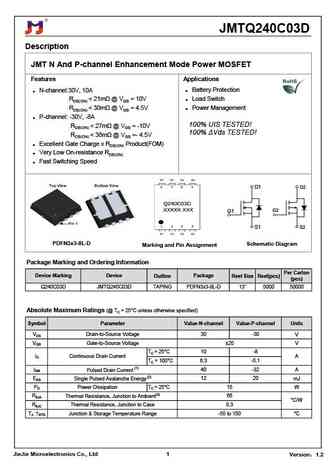

JMTQ240C03D Description JMT N And P-channel Enhancement Mode Power MOSFET Features Applications N-channel 30V, 10A Battery Protection RDS(ON) ... See More ⇒

 9.2. Size:852K  jiejie micro
 jmtq230n04d.pdf pdf_icon

JMTQ200P03A

JMTQ230N04D Description JMT Dual N-channel Enhancement Mode Power MOSFET Features Applications 40V, 12A Load Switch RDS(ON) ... See More ⇒

 9.3. Size:585K  jiejie micro
 jmtq250c03d.pdf pdf_icon

JMTQ200P03A

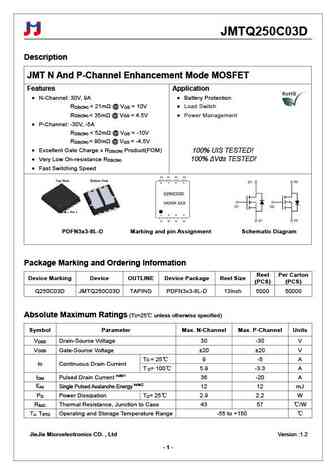

JMTQ250C03D Description JMT N And P-Channel Enhancement Mode MOSFET Features Application N-Channel 30V, 9A Battery Protection R ... See More ⇒
