JMTK90N02A Datasheet. Specs and Replacement

Type Designator: JMTK90N02A  📄📄

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 54 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 20 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 12 V

|Id| ⓘ - Maximum Drain Current: 90 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 19 nS

Cossⓘ - Output Capacitance: 528 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.0036 Ohm

Package: TO252

  📄📄 Copy

JMTK90N02A substitution

- MOSFET ⓘ Cross-Reference Search



JMTK90N02A datasheet

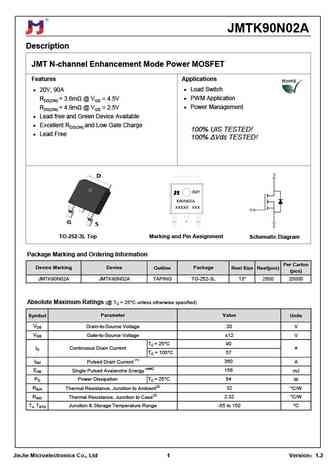

 ..1. Size:476K  jiejie micro
 jmtk90n02a.pdf pdf_icon

JMTK90N02A

JMTK90N02A Description JMT N-channel Enhancement Mode Power MOSFET Features Applications 20V, 90A Load Switch RDS(ON) ... See More ⇒
