   Type Designator: JMSL1018PGD
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel
   Pd ⓘ - Maximum Power Dissipation: 26 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 100 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
   |Id| ⓘ - Maximum Drain Current: 27 A
   Tj ⓘ - Maximum Junction Temperature: 150 °C
   tr ⓘ - Rise Time: 19 nS
   Cossⓘ - Output Capacitance: 329 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.019 Ohm
   Package: PDFN5X6-8L-D


 JMSL1018PGD substitution

   - MOSFET ⓘ Cross-Reference Search



JMSL1018PGD Datasheet (PDF)

 ..1. Size:1179K  jiejie micro
 jmsl1018pgd.pdf pdf_icon

JMSL1018PGD

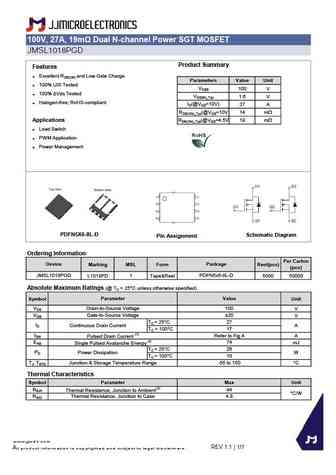

100V, 27A, 19m Dual N-channel Power SGT MOSFETJMSL1018PGDProduct SummaryFeatures Excellent RDS(ON) and Low Gate ChargeParametersValue Unit 100% UIS TestedVDSS 100 V 100% Vds TestedVGS(th)_Typ 1.6 V Halogen-free; RoHS-compliantID(@VGS=10V) 27 ARDS(ON)_Typ(@VGS=10V 14 mWApplications RDS(ON)_Typ(@VGS=4.5V 19 mW Load Switch PWM Application

 4.1. Size:1206K  jiejie micro
 jmsl1018pgq.pdf pdf_icon

JMSL1018PGD

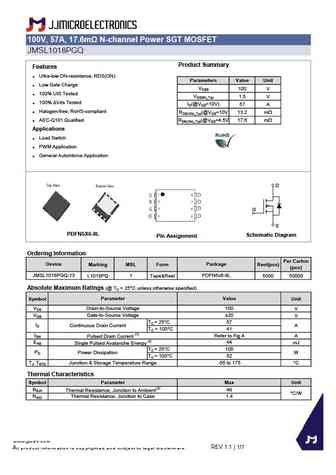

100V, 57A, 17.6m N-channel Power SGT MOSFETJMSL1018PGQProduct SummaryFeatures Ultra-low ON-resistance, RDS(ON)ParametersValue Unit Low Gate ChargeVDSS 100 V 100% UIS TestedVGS(th)_Typ 1.5 V 100% Vds TestedID(@VGS=10V) 57 A Halogen-free; RoHS-compliantRDS(ON)_Typ(@VGS=10V 13.2 mW AEC-Q101 Qualified RDS(ON)_Typ(@VGS=4.5V 17.6 mWApplications

 4.2. Size:1209K  jiejie micro
 jmsl1018pg.pdf pdf_icon

JMSL1018PGD

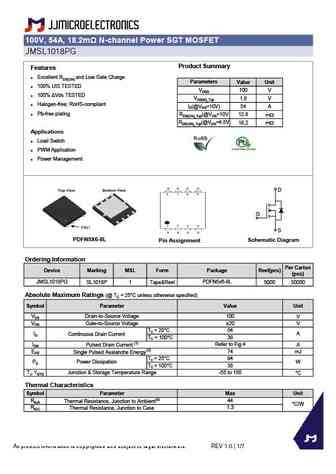

100V, 54A, 18.2m N-channel Power SGT MOSFETJMSL1018PGProduct SummaryFeatures Excellent RDS(ON) and Low Gate ChargeParameters Value Unit 100% UIS TESTEDVDSS 100 V 100% Vds TESTEDVGS(th)_Typ 1.8 V Halogen-free; RoHS-compliantID(@VGS=10V) 54 A Pb-free platingRDS(ON)_Typ(@VGS=10V 12.8 mWRDS(ON)_Typ(@VGS=4.5V 18.2 mWApplications Load Switch

 5.1. Size:1250K  jiejie micro
 jmsl1018pkq.pdf pdf_icon

JMSL1018PGD

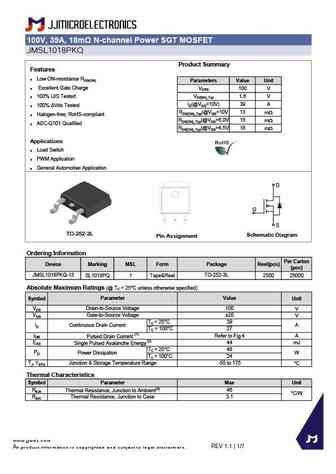

100V, 39A, 18m N-channel Power SGT MOSFETJMSL1018PKQProduct SummaryFeatures Low ON-resistance RDS(ON) Parameters Value Unit Excellent Gate ChargeVDSS 100 VVGS(th)_Typ 100% UIS Tested 1.6 VID(@VGS=10V) 39 A 100% Vds TestedRDS(ON)_Typ(@VGS=10V 13 mW Halogen-free; RoHS-compliantRDS(ON)_Typ(@VGS=6.0V 15 mW AEC-Q101 QualifiedRDS(ON)_Typ(@VGS=4.5V
