   Type Designator: JMTG320N10A
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel
   Pd ⓘ - Maximum Power Dissipation: 104.2 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 100 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
   |Id| ⓘ - Maximum Drain Current: 28 A
   Tj ⓘ - Maximum Junction Temperature: 150 °C
   tr ⓘ - Rise Time: 24 nS
   Cossⓘ - Output Capacitance: 95 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.03 Ohm
   Package: PDFN5X6-8L


 JMTG320N10A substitution

   - MOSFET ⓘ Cross-Reference Search



JMTG320N10A Datasheet (PDF)

 ..1. Size:1186K  jiejie micro
 jmtg320n10a.pdf pdf_icon

JMTG320N10A

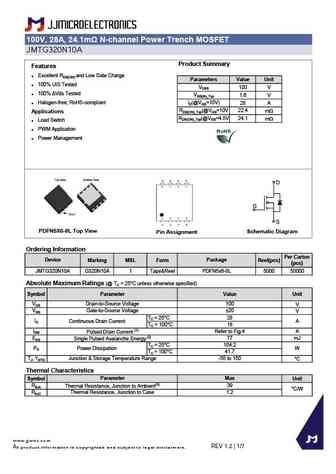

100V, 28A, 24.1m N-channel Power Trench MOSFETJMTG320N10AProduct SummaryFeatures Excellent RDS(ON) and Low Gate ChargeParameters Value Unit 100% UIS TestedVDSS 100 V 100% Vds TestedVGS(th)_Typ 1.6 V Halogen-free; RoHS-compliantID(@VGS=10V) 28 ARDS(ON)_Typ(@VGS=10V 22.4 mWApplicationsRDS(ON)_Typ(@VGS=4.5V 24.1 mW Load Switch PWM Application
