   Type Designator: JMTG90N02A
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel

Absolute Maximum Ratings


   Pd ⓘ - Maximum Power Dissipation: 40 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 20 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 12 V
   |Id| ⓘ - Maximum Drain Current: 75 A
   Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics


   tr ⓘ - Rise Time: 19 nS
   Cossⓘ - Output Capacitance: 528 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.0036 Ohm
   Package: PDFN5X6-8L


 JMTG90N02A substitution

   - MOSFET ⓘ Cross-Reference Search



JMTG90N02A datasheet

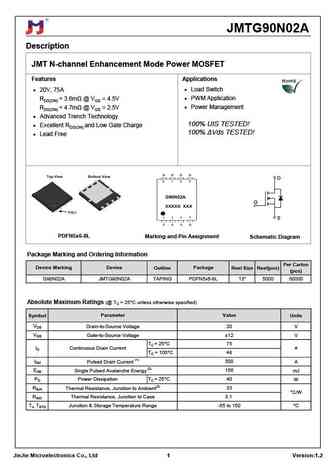

 ..1. Size:511K  jiejie micro
 jmtg90n02a.pdf pdf_icon

JMTG90N02A

JMTG90N02A Description JMT N-channel Enhancement Mode Power MOSFET Features Applications 20V, 75A Load Switch RDS(ON) ... See More ⇒

Detailed specifications: JMTG3005A , JMTG3005B , JMTG3005C , JMTG3008A , JMTG3008D , JMTG320N10A , JMTG4004A , JMTG60N04B , IRF2807 , JMSL0615AGD , JMSL0615AGDQ , JMSL0615AP , JMSL0615APD , JMSL0615AUD , JMSL0615AV , JMSL0615PGDQ , JMSL0620AGDE .
