JMSL0620AGEQ Datasheet. Specs and Replacement

Type Designator: JMSL0620AGEQ  📄📄

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 43 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 60 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 32 A

Tj ⓘ - Maximum Junction Temperature: 175 °C

Electrical Characteristics

tr ⓘ - Rise Time: 23 nS

Cossⓘ - Output Capacitance: 143 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.02 Ohm

Package: PDFN5X6-8L

  📄📄 Copy

JMSL0620AGEQ substitution

- MOSFET ⓘ Cross-Reference Search



JMSL0620AGEQ datasheet

 ..1. Size:400K  jiejie micro

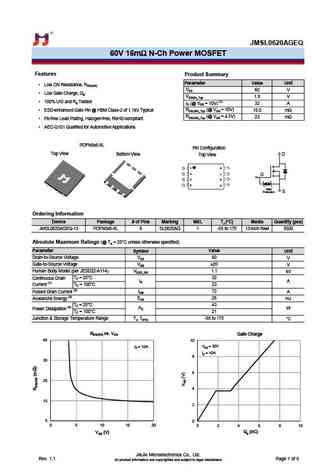

 jmsl0620ageq.pdf pdf_icon

JMSL0620AGEQ

JMSL0620AGEQ 60V 16m N-Ch Power MOSFET Features Product Summary Parameter Value Unit Low ON Resistance, RDS(ON) VDS 60 V Low Gate Charge, Qg VGS(th)_Typ 1.8 V 100% UIS and Rg Tested ID (@ VGS = 10V) (1) 32 A ESD-enhanced Gate Pin @ HBM Class-2 of 1.1kV Typical RDS(ON)_Typ (@ VGS = 10V) 16.0 m RDS(ON)_Typ (@ VGS = 4.5V) 23 m Pb-free Lead Plating, Ha... See More ⇒

 3.1. Size:400K  jiejie micro

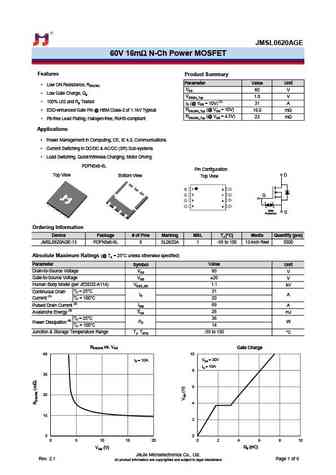

 jmsl0620age.pdf pdf_icon

JMSL0620AGEQ

JMSL0620AGE 60V 16m N-Ch Power MOSFET Features Product Summary Parameter Value Unit Low ON Resistance, RDS(ON) VDS 60 V Low Gate Charge, Qg VGS(th)_Typ 1.8 V 100% UIS and Rg Tested ID (@ VGS = 10V) (1) 31 A ESD-enhanced Gate Pin @ HBM Class-2 of 1.1kV Typical RDS(ON)_Typ (@ VGS = 10V) 16.0 m RDS(ON)_Typ (@ VGS = 4.5V) 23 m Pb-free Lead Plating, Hal... See More ⇒

 4.1. Size:305K  jiejie micro

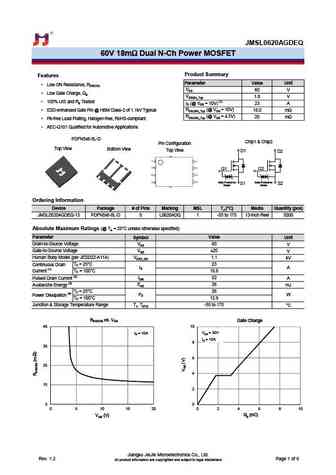

 jmsl0620agdeq.pdf pdf_icon

JMSL0620AGEQ

JMSL0620AGDEQ 60V 18m Dual N-Ch Power MOSFET Product Summary Features Parameter Value Unit Low ON Resistance, RDS(ON) VDS 60 V Low Gate Charge, Qg VGS(th)_Typ 1.8 V 100% UIS and Rg Tested ID (@ VGS = 10V) (1) 23 A ESD-enhanced Gate Pin @ HBM Class-2 of 1.1kV Typical RDS(ON)_Typ (@ VGS = 10V) 18.0 m RDS(ON)_Typ (@ VGS = 4.5V) 25 m Pb-free Lead Plati... See More ⇒

 4.2. Size:318K  jiejie micro

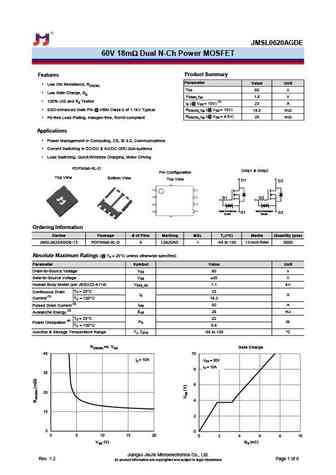

 jmsl0620agde.pdf pdf_icon

JMSL0620AGEQ

JMSL0620AGDE 60V 18m Dual N-Ch Power MOSFET Product Summary Features Parameter Value Unit Low ON Resistance, RDS(ON) VDS 60 V Low Gate Charge, Qg VGS(th)_Typ 1.8 V 100% UIS and Rg Tested ID (@ VGS = 10V) (1) 23 A ESD-enhanced Gate Pin @ HBM Class-2 of 1.1kV Typical RDS(ON)_Typ (@ VGS = 10V) 18.0 m RDS(ON)_Typ (@ VGS = 4.5V) 25 m Pb-free Lead Platin... See More ⇒

SHOW MORE

Detailed specifications: JMSL0615AP, JMSL0615APD, JMSL0615AUD, JMSL0615AV, JMSL0615PGDQ, JMSL0620AGDE, JMSL0620AGDEQ, JMSL0620AGE, 7N60, JMSL0620AUE, JMSL0630AG, JMSL0630AGD, JMSL0630AU, JMSL0803MG, JMSL1070AK, JMSL1070APD, JMSL1070AY
