SLB60R105E7D PDF and Equivalents Search



SLB60R105E7D Specs and Replacement

Type Designator: SLB60R105E7D

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 231 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 600 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 30 V

|Id| ⓘ - Maximum Drain Current: 29 A

Tj ⓘ - Maximum Junction Temperature: 155 °C

Electrical Characteristics

tr ⓘ - Rise Time: 23 nS

Cossⓘ - Output Capacitance: 96 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.105 Ohm

Package: TO263

SLB60R105E7D substitution

- MOSFET ⓘ Cross-Reference Search

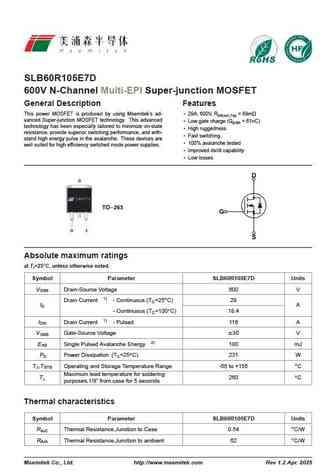

SLB60R105E7D datasheet

 ..1. Size:3001K  maple semi
 slb60r105e7d.pdf pdf_icon

SLB60R105E7D

SLB60R105E7D 600V N-Channel Multi-EPI Super-junction MOSFET General Description Features This power MOSFET is produced by using Msemitek s ad- 29A, 600V, RDS(on),Typ = 89m vanced Super-junction MOSFET technology. This advanced Low gate charge (Qg,typ = 61nC) technology has been especially tailored to minimize on-state High ruggedness resistance, provide superior switchin... See More ⇒
