All MOSFET. SLC013RN06G Datasheet



SLC013RN06G Datasheet and Replacement


   Type Designator: SLC013RN06G
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel
   Pd ⓘ - Maximum Power Dissipation: 245 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 60 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
   |Id| ⓘ - Maximum Drain Current: 300 A
   Tj ⓘ - Maximum Junction Temperature: 155 °C
   tr ⓘ - Rise Time: 85 nS
   Cossⓘ - Output Capacitance: 1902 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.00155 Ohm
   Package: TOLL


 SLC013RN06G substitution

   - MOSFET ⓘ Cross-Reference Search

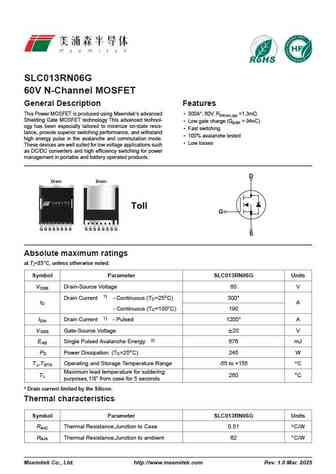

SLC013RN06G Datasheet (PDF)

 ..1. Size:7411K  maple semi
 slc013rn06g.pdf pdf_icon

SLC013RN06G

SLC013RN06G60V N-Channel MOSFETGeneral Description FeaturesThis Power MOSFET is produced using Msemiteks advanced 300A*, 60V, RDS(on),typ =1.3mShielding Gate MOSFET technology This advanced technol- Low gate charge (Qg,typ = 94nC)ogy has been especially tailored to minimize on-state resis- Fast switchingtance, provide superior switching performance, and withstand
