All MOSFET. SLD40N03TB Datasheet



SLD40N03TB Datasheet and Replacement


   Type Designator: SLD40N03TB
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel
   Pd ⓘ - Maximum Power Dissipation: 32.6 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 30 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
   |Id| ⓘ - Maximum Drain Current: 48.6 A
   Tj ⓘ - Maximum Junction Temperature: 150 °C
   tr ⓘ - Rise Time: 2.8 nS
   Cossⓘ - Output Capacitance: 134 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.008 Ohm
   Package: TO252


 SLD40N03TB substitution

   - MOSFET ⓘ Cross-Reference Search

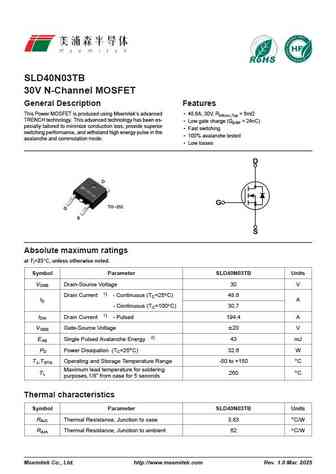

SLD40N03TB Datasheet (PDF)

 ..1. Size:4788K  maple semi
 sld40n03tb.pdf pdf_icon

SLD40N03TB

SLD40N03TB30V N-Channel MOSFETGeneral Description FeaturesThis Power MOSFET is produced using Msemiteks advanced 48.6A, 30V, RDS(on),Typ = 6mTRENCH technology. This advanced technology has been es- Low gate charge (Qg,typ = 24nC)pecially tailored to minimize conduction loss, provide superior Fast switchingswitching performance, and withstand high energy pulse in t
