SLT70R180E7C PDF and Equivalents Search



SLT70R180E7C Specs and Replacement

Type Designator: SLT70R180E7C

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 205 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 700 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 30 V

|Id| ⓘ - Maximum Drain Current: 22 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 20 nS

Cossⓘ - Output Capacitance: 52 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.18 Ohm

Package: PTO252

SLT70R180E7C substitution

- MOSFET ⓘ Cross-Reference Search

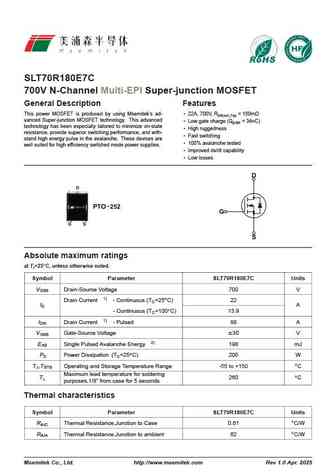

SLT70R180E7C datasheet

 ..1. Size:6464K  maple semi
 slt70r180e7c.pdf pdf_icon

SLT70R180E7C

SLT70R180E7C 700V N-Channel Multi-EPI Super-junction MOSFET General Description Features This power MOSFET is produced by using Msemitek s ad- 22A, 700V, RDS(on),Typ = 150m vanced Super-junction MOSFET technology. This advanced Low gate charge (Qg,typ = 34nC) technology has been especially tailored to minimize on-state High ruggedness resistance, provide superior switchi... See More ⇒

Detailed specifications: SLM120N06G, SLM150N04G, SLM160N04G, SLP65R180E7C, SLP65R1K2E7, SLP65R380E7C, SLP730S, SLT65R180E7C, IRF1404, SLU4N65U, SLD65R280E7C, SLD65R380E7C, SLD65R600E7C, SLD80N02TB, SLD8N50UD, SLD8N65SV, SLD90N02TB
