SLD95R3K2GTZ PDF and Equivalents Search



SLD95R3K2GTZ Specs and Replacement

Type Designator: SLD95R3K2GTZ

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 72 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 950 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 3.5 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 62 nS

Cossⓘ - Output Capacitance: 7.5 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 3.2 Ohm

Package: TO252

SLD95R3K2GTZ substitution

- MOSFET ⓘ Cross-Reference Search

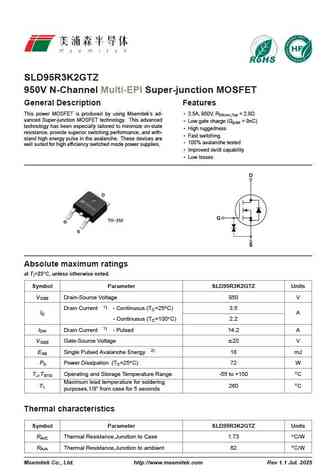

SLD95R3K2GTZ datasheet

 ..1. Size:4976K  maple semi
 sld95r3k2gtz.pdf pdf_icon

SLD95R3K2GTZ

SLD95R3K2GTZ 950V N-Channel Multi-EPI Super-junction MOSFET General Description Features This power MOSFET is produced by using Msemitek s ad- 3.5A, 950V, RDS(on),Typ = 2.8 vanced Super-junction MOSFET technology. This advanced Low gate charge (Qg,typ = 9nC) technology has been especially tailored to minimize on-state High ruggedness resistance, provide superior switchin... See More ⇒
