Type Designator: SLF95R760GTZ

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 126 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 950 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 8.9 A

Tj ⓘ - Maximum Junction Temperature: 155 °C

Electrical Characteristics

tr ⓘ - Rise Time: 20 nS

Cossⓘ - Output Capacitance: 21 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.76 Ohm

Package: TO220F

SLF95R760GTZ substitution

- MOSFET ⓘ Cross-Reference Search

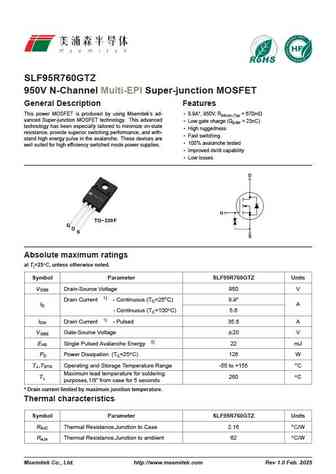

SLF95R760GTZ datasheet

 ..1. Size:2580K  maple semi
 slf95r760gtz.pdf pdf_icon

SLF95R760GTZ

SLF95R760GTZ 950V N-Channel Multi-EPI Super-junction MOSFET General Description Features This power MOSFET is produced by using Msemitek s ad- 8.9A*, 950V, RDS(on),Typ = 670m vanced Super-junction MOSFET technology. This advanced Low gate charge (Qg,typ = 23nC) technology has been especially tailored to minimize on-state High ruggedness resistance, provide superior switc... See More ⇒
