MPG150N10S Datasheet and Replacement
Type Designator: MPG150N10S
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Pd ⓘ - Maximum Power Dissipation: 211 W
|Vds|ⓘ - Maximum Drain-Source Voltage: 100 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
|Id| ⓘ - Maximum Drain Current: 150 A
Tj ⓘ - Maximum Junction Temperature: 175 °C
tr ⓘ - Rise Time: 23 nS
Cossⓘ - Output Capacitance: 590 pF
Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.006 Ohm
Package: TO263
MPG150N10S substitution

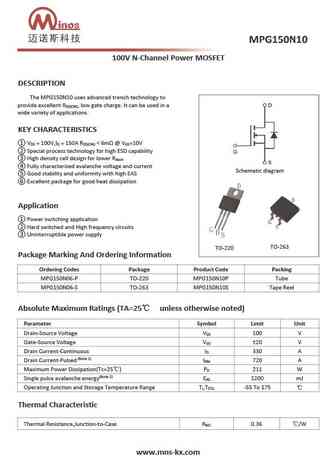

MPG150N10S Datasheet (PDF)
mpg150n10p mpg150n10s.pdf

100V N-Channel Power MOSFETDESCRIPTIONThe MPG150N10 uses advanced trench technology toprovide excellent R , low gate charge. It can be used in aDS(ON)wide variety of applications.KEY CHARACTERISTICS V = 100V,I = 150A R
