MDT30N10 Datasheet. Specs and Replacement

Type Designator: MDT30N10  📄📄

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 70 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 100 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 30 A

Tj ⓘ - Maximum Junction Temperature: 175 °C

Electrical Characteristics

tr ⓘ - Rise Time: 13 nS

Cossⓘ - Output Capacitance: 225 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.03 Ohm

Package: TO252

MDT30N10 substitution

- MOSFET ⓘ Cross-Reference Search



MDT30N10 datasheet

 ..1. Size:936K  cn minos
 mdt30n10.pdf pdf_icon

MDT30N10

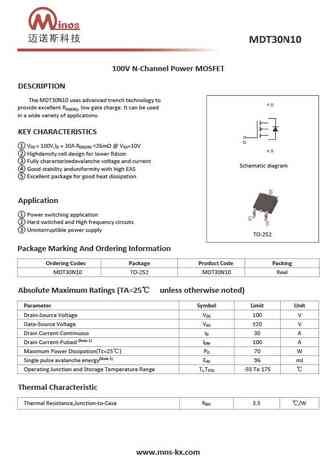

100V N-Channel Power MOSFET DESCRIPTION The MDT30N10 uses advanced trench technology to provide excellent R , low gate charge. It can be used DS(ON) in a wide variety of applications. KEY CHARACTERISTICS V = 100V,I = 30A R ... See More ⇒

 0.1. Size:951K  cn minos
 mdt30n10d mpg30n10p.pdf pdf_icon

MDT30N10

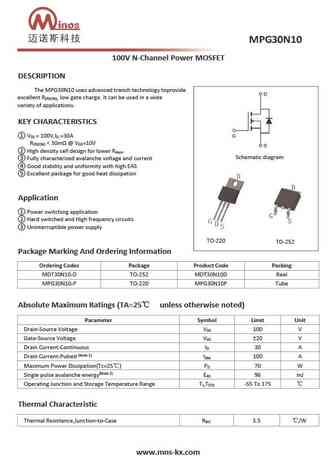

100V N-Channel Power MOSFET DESCRIPTION The MPG30N10 uses advanced trench technology toprovide excellent R , low gate charge. It can be used in a wide DS(ON) variety of applications. KEY CHARACTERISTICS V = 100V,I =30A DS D R ... See More ⇒

 8.1. Size:962K  cn minos
 mdt30n06l.pdf pdf_icon

MDT30N10

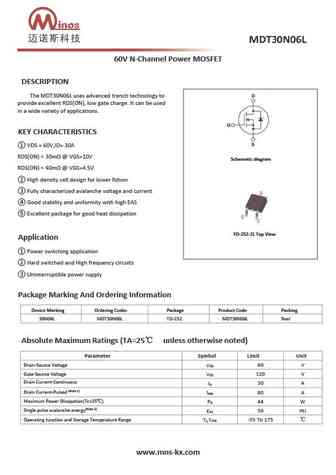

60V N-Channel Power MOSFET DESCRIPTION The MDT30N06L uses advanced trench technology to provide excellent RDS(ON), low gate charge. It can be used in a wide variety of applications. KEY CHARACTERISTICS VDS = 60V,ID= 30A RDS(ON) ... See More ⇒

 9.1. Size:492K  cn cbi
 mmdt3052dw.pdf pdf_icon

MDT30N10

MMDT3052DW ( NPN+NPN) Silicon Epitaxial Planar Transistor Features Each transistor elements are independent Applications For low frequency amplify application MARKING 5G Parameter Symbol Value Unit Collector Base Voltage VCBO 50 V Collector Emitter Voltage VCEO 50 V Emitter Base Voltage VEBO 6 V Collector Current IC 200 mA Power Dissipation Ptot 150 mW Junction Temperature ... See More ⇒

SHOW MORE

Detailed specifications: MDT15N10, MDT15P04D, MDT18N10D, MDT18N20, MDT20N06, MDT20P04D, MDT2N60, MDT30N06L, IRF3710, MDT30N10D, MDT40N06D, MDT40N10D, MDT50N06D, MPF2N60, MPF3N150, MPF40N25, MPF50N25
