   Type Designator: MDT50N06D
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel
   Pd ⓘ - Maximum Power Dissipation: 87 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 60 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
   |Id| ⓘ - Maximum Drain Current: 50 A
   Tj ⓘ - Maximum Junction Temperature: 175 °C
   tr ⓘ - Rise Time: 6 nS
   Cossⓘ - Output Capacitance: 100 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.015 Ohm
   Package: TO252


 MDT50N06D substitution

   - MOSFET ⓘ Cross-Reference Search

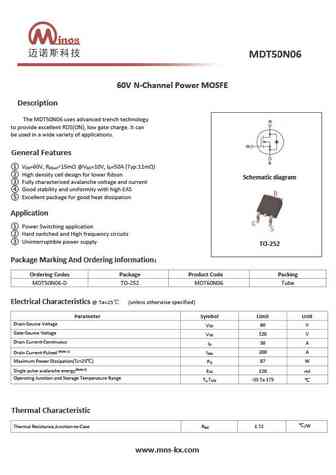

MDT50N06D Datasheet (PDF)

 ..1. Size:1036K  cn minos
 mdt50n06d.pdf pdf_icon

MDT50N06D

60V N-Channel Power MOSFEDescriptionThe MDT50N06 uses advanced trench technologyto provide excellent RDS(ON), low gate charge. It canbe used in a wide variety of applications.General Features V =60V, R
