MPF8N65 Datasheet. Specs and Replacement

Type Designator: MPF8N65  📄📄

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 35 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 650 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 30 V

|Id| ⓘ - Maximum Drain Current: 8 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 20 nS

Cossⓘ - Output Capacitance: 97 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 1.4 Ohm

Package: TO220F

MPF8N65 substitution

- MOSFET ⓘ Cross-Reference Search

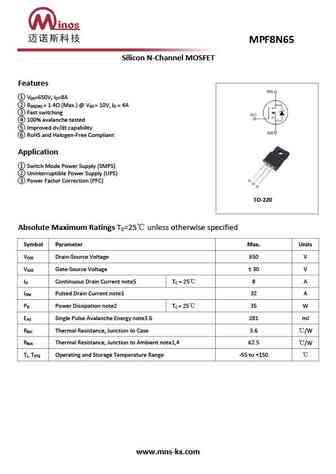

MPF8N65 datasheet

 ..1. Size:715K  cn minos
 mpf8n65.pdf pdf_icon

MPF8N65

Silicon N-Channel MOSFET Features V =650V, I =8A DS D R = 1.4 (Max.) @ V = 10V, I = 4A DS(ON) GS D Fast switching 100% avalanche tested Improved dv/dt capability RoHS and Halogen-Free Compliant Application Switch Mode Power Supply (SMPS) Uninterruptible Power Supply (UPS) Power Factor Correction (PFC) TO-220 Absolute Maximum Ratings T =25 ... See More ⇒

 8.1. Size:625K  trinnotech
 tmp8n60az tmpf8n60az.pdf pdf_icon

MPF8N65

TMP8N60AZ(G)/TMPF8N60AZ(G) Features N-channel MOSFET Low gate charge BVDSS ID RDS(on) 100% avalanche tested 600V 7.5A ... See More ⇒

 8.2. Size:999K  jiejie micro
 jmpf8n60bj.pdf pdf_icon

MPF8N65

JMPF8N60BJ Description JMP N-channel Enhancement Mode Power MOSFET Features Applications 600V, 8A Load Switch RDS(ON) ... See More ⇒

 9.1. Size:605K  trinnotech
 tmp8n50z tmpf8n50z.pdf pdf_icon

MPF8N65

TMP8N50Z(G)/TMPF8N50Z(G) N-channel MOSFET Features Low gate charge BVDSS ID RDS(on) 100% avalanche tested 500V 8A ... See More ⇒
