MP11P20 Datasheet and Replacement


   Type Designator: MP11P20
   Type of Transistor: MOSFET
   Type of Control Channel: P -Channel
   Pd ⓘ - Maximum Power Dissipation: 78 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 200 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
   |Id| ⓘ - Maximum Drain Current: 11 A
   Tj ⓘ - Maximum Junction Temperature: 150 °C
   tr ⓘ - Rise Time: 74 nS
   Cossⓘ - Output Capacitance: 370 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.42 Ohm
   Package: TO220

 MP11P20 Transistor Equivalent Substitute - MOSFET Cross-Reference Search

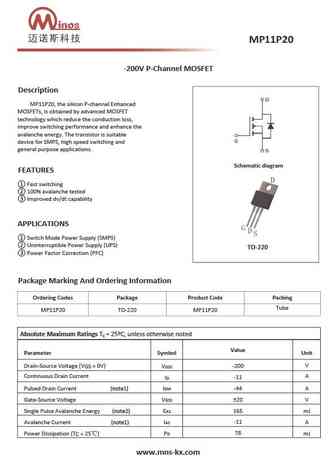

MP11P20 Datasheet (PDF)

 ..1. Size:540K  cn minos
 mp11p20.pdf pdf_icon

MP11P20

-200V P-Channel MOSFET Description MP11P20, the silicon P-channel Enhanced MOSFETs, is obtained by advanced MOSFET technology which reduce the conduction loss, improve switching performance and enhance the avalanche energy. The transistor is suitable device for SMPS, high speed switching and general purpose applications. Schematic diagram FEATURES Fast switching 100% avalanc... See More ⇒
