   Type Designator: MP150N08P
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel
   Pd ⓘ - Maximum Power Dissipation: 259 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 80 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
   |Id| ⓘ - Maximum Drain Current: 150 A
   Tj ⓘ - Maximum Junction Temperature: 175 °C
   tr ⓘ - Rise Time: 20 nS
   Cossⓘ - Output Capacitance: 570 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.005 Ohm
   Package: TO220

 MP150N08P Transistor Equivalent Substitute - MOSFET Cross-Reference Search

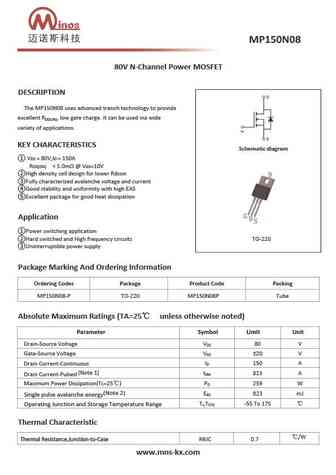

MP150N08P Datasheet (PDF)

 ..1. Size:591K  cn minos
 mp150n08p.pdf pdf_icon

MP150N08P

80V N-Channel Power MOSFET DESCRIPTION The MP150N08 uses advanced trench technology to provide excellent RDS(ON), low gate charge. It can be used ina wide variety of applications. KEY CHARACTERISTICS Schematic diagram VDS = 80V,ID = 150A RDS(ON) ... See More ⇒
