AP6G04S Datasheet. Specs and Replacement
Type Designator: AP6G04S 📄📄
Type of Transistor: MOSFET
Type of Control Channel: NP-Channel
Absolute Maximum Ratings
Pd ⓘ - Maximum Power Dissipation: 1.67 W
|Vds|ⓘ - Maximum Drain-Source Voltage: 40 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
|Id| ⓘ - Maximum Drain Current: 6 A
Tj ⓘ - Maximum Junction Temperature: 150 °C
Electrical Characteristics
tr ⓘ - Rise Time: 2.2 nS
Cossⓘ - Output Capacitance: 76 pF
RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.026 Ohm
Package: SOP8
📄📄 Copy
AP6G04S substitution
- MOSFET ⓘ Cross-Reference Search
AP6G04S datasheet
ap6g04s.pdf

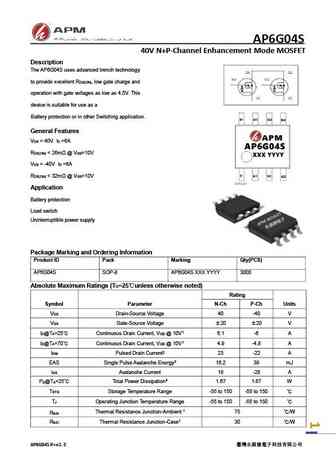

AP6G04S 40V N+P-Channel Enhancement Mode MOSFET Description The AP6G04S uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 40V I =6A DS D R ... See More ⇒
