AP85N03NF Datasheet and Replacement


   Type Designator: AP85N03NF
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel
   Pd ⓘ - Maximum Power Dissipation: 45 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 30 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
   |Id| ⓘ - Maximum Drain Current: 85 A
   Tj ⓘ - Maximum Junction Temperature: 175 °C
   tr ⓘ - Rise Time: 120 nS
   Cossⓘ - Output Capacitance: 386 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.004 Ohm
   Package: PDFN5X6-8L


 AP85N03NF substitution

   - MOSFET ⓘ Cross-Reference Search

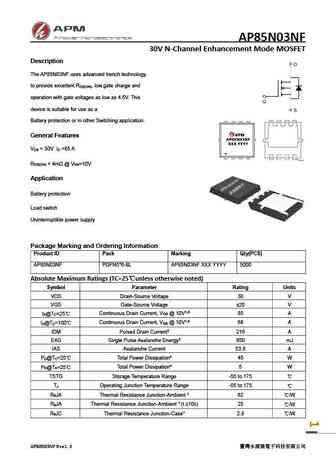

AP85N03NF Datasheet (PDF)

 ..1. Size:2002K  cn apm
 ap85n03nf.pdf pdf_icon

AP85N03NF

AP85N03NF 30V N-Channel Enhancement Mode MOSFET Description The AP85N03NF uses advanced trench technology to provide excellent R , low gate charge and DS(ON)operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 30V I =85 A DS DR
