AP100N08D Datasheet. Specs and Replacement

Type Designator: AP100N08D  📄📄

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 158 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 80 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 100 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 33 nS

Cossⓘ - Output Capacitance: 770 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.0068 Ohm

Package: TO252

  📄📄 Copy

AP100N08D substitution

- MOSFET ⓘ Cross-Reference Search



AP100N08D datasheet

 ..1. Size:1461K  cn apm
 ap100n08d.pdf pdf_icon

AP100N08D

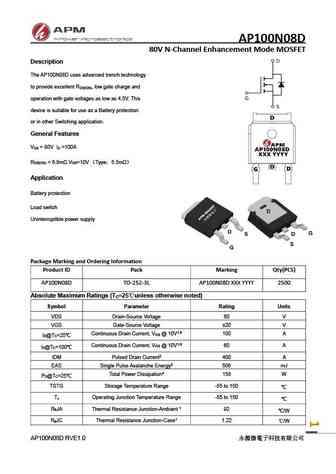

AP100N08D 80V N-Channel Enhancement Mode MOSFET Description The AP100N08D uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 80V I =100A DS D R ... See More ⇒

 7.1. Size:1583K  cn apm
 ap100n03p ap100n03t.pdf pdf_icon

AP100N08D

AP100N03P/T 30V N-Channel Enhancement Mode MOSFET Description The AP100N03P/T uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 30V I =100 A DS D R ... See More ⇒

 7.2. Size:1377K  cn apm
 ap100n03ad.pdf pdf_icon

AP100N08D

AP100N03AD 30V N-Channel Enhancement Mode MOSFET Description The AP100N03AD uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V =30V I =100A DS D R ... See More ⇒

 7.3. Size:903K  cn apm
 ap100n04d.pdf pdf_icon

AP100N08D

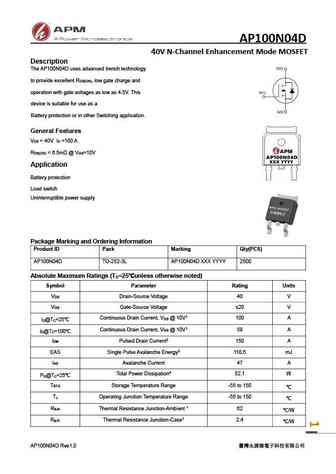

AP100N04D 40V N-Channel Enhancement Mode MOSFET Description The AP100N04D uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 40V I =100 A DS D R ... See More ⇒
