APG130N06F Datasheet. Specs and Replacement

Type Designator: APG130N06F  📄📄

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 50 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 60 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 130 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 6.7 nS

Cossⓘ - Output Capacitance: 1250 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.0035 Ohm

Package: TO220F

  📄📄 Copy

APG130N06F substitution

- MOSFET ⓘ Cross-Reference Search



APG130N06F datasheet

 ..1. Size:2025K  cn apm

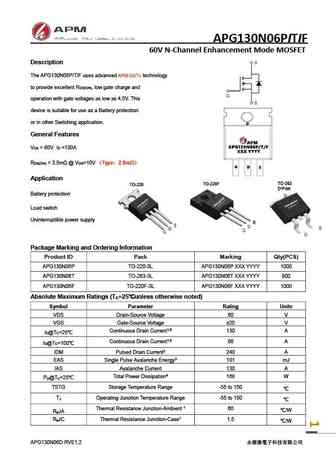

 apg130n06p apg130n06t apg130n06f.pdf pdf_icon

APG130N06F

... See More ⇒

 5.1. Size:1366K  cn apm

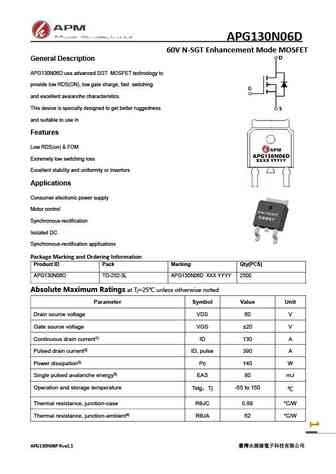

 apg130n06d.pdf pdf_icon

APG130N06F

APG130N06D 60V N-SGT Enhancement Mode MOSFET General Description APG130N06D use advanced SGT MOSFET technology to provide low RDS(ON), low gate charge, fast switching and excellent avalanche characteristics. This device is specially designed to get better ruggedness and suitable to use in Features Low RDS(on) & FOM Extremely low switching loss Excellent stability and unif... See More ⇒

 5.2. Size:1984K  cn apm
 apg130n06nf.pdf pdf_icon

APG130N06F

APG130N06NF 60V N-SGT Enhancement Mode MOSFET General Description APG130N06NF use advanced SGT MOSFET technology to provide low RDS(ON), low gate charge, fast switching and excellent avalanche characteristics. This device is specially designed to get better ruggedness and suitable to use in Features Low RDS(on) & FOM Extremely low switching loss Excellent stability and un... See More ⇒
