AP12N65P MOSFET Datasheet: N-Ch, 650V, 12A. Full specification with pinout and replacement list

AP12N65P Specs and Replacement

Type Designator: AP12N65P

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 32.1 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 650 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 30 V

|Id| ⓘ - Maximum Drain Current: 12 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 29 nS

Cossⓘ - Output Capacitance: 147 pF

Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.72 Ohm

Package: TO263

AP12N65P substitution

- MOSFET ⓘ Cross-Reference Search

AP12N65P datasheet

..1. Size:1505K cn apm
ap12n65f ap12n65p.pdf pdf_icon

AP12N65FIP 650V N-Channel Enhancement Mode MOSFET Description The AP12N65F/P is silicon N-channel Enhanced VDMOSFETs, is obtained by the self-aligned planar Technology which reduce the conduction loss, improve switching performance and enhance the avalanche energy. The transistor can be used in various power switching circuit for system miniaturization and higher efficiency. ... See More ⇒

9.1. Size:997K allpower
ap12n10s.pdf pdf_icon

... See More ⇒

9.2. Size:2006K cn apm
ap12n40f ap12n40p.pdf pdf_icon

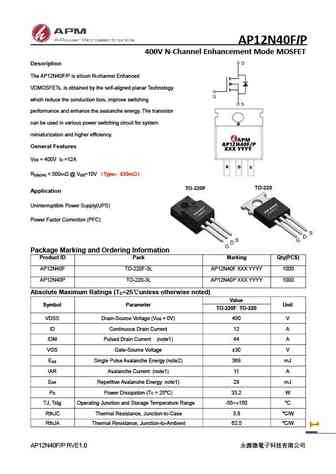

AP12N40FIP 400V N-Channel Enhancement Mode MOSFET Description The AP12N40F/P is silicon N-channel Enhanced VDMOSFETs, is obtained by the self-aligned planar Technology which reduce the conduction loss, improve switching performance and enhance the avalanche energy. The transistor can be used in various power switching circuit for system miniaturization and higher efficiency. ... See More ⇒

9.3. Size:1654K cn apm
ap12n06s.pdf pdf_icon

AP12N06S 60V N-Channel Enhancement Mode MOSFET Description The AP12N06S uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 60V I =12A DS D R ... See More ⇒
