AP30P10P MOSFET Datasheet: P-Ch, 100V, 30A. Full specification with pinout and replacement list

AP30P10P Specs and Replacement

Type Designator: AP30P10P

Type of Transistor: MOSFET

Type of Control Channel: P-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 96 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 100 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 30 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 27.4 nS

Cossⓘ - Output Capacitance: 129 pF

Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.11 Ohm

Package: TO220

AP30P10P substitution

- MOSFET ⓘ Cross-Reference Search

AP30P10P datasheet

..1. Size:1439K cn apm
ap30p10p.pdf pdf_icon

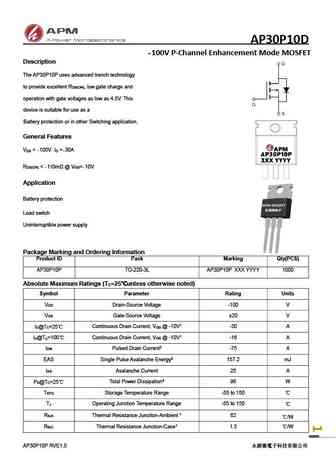

AP30P10D -100V P-Channel Enhancement Mode MOSFET Description The AP30P10P uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = -100V I =-30A DS D R ... See More ⇒

7.1. Size:93K ape
ap30p10gs.pdf pdf_icon

AP30P10GS RoHS-compliant Product Advanced Power P-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET Lower Gate Charge D BVDSS -100V Simple Drive Requirement RDS(ON) 80m Fast Switching Characteristic ID -25A G S Description Advanced Power MOSFETs from APEC provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance... See More ⇒

7.2. Size:94K ape
ap30p10gs-hf.pdf pdf_icon

AP30P10GS-HF Halogen-Free Product Advanced Power P-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET Lower Gate Charge D BVDSS -100V Simple Drive Requirement RDS(ON) 80m Fast Switching Characteristic ID -25A G RoHS Compliant & Halogen-Free S Description Advanced Power MOSFETs from APEC provide the designer with the best combination of fast switching, ruggediz... See More ⇒

7.3. Size:151K ape
ap30p10gi.pdf pdf_icon

AP30P10GI RoHS-compliant Product Advanced Power P-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET Lower Gate Charge D BVDSS -100V Simple Drive Requirement RDS(ON) 80m Fast Switching Characteristic ID -25A G S Description Advanced Power MOSFETs from APEC provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance... See More ⇒
