AP3407AI Datasheet. Specs and Replacement

Type Designator: AP3407AI  📄📄

Type of Transistor: MOSFET

Type of Control Channel: P-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 1.32 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 30 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 4.2 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 8.4 nS

Cossⓘ - Output Capacitance: 100 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.09 Ohm

Package: SOT23

  📄📄 Copy

AP3407AI substitution

- MOSFET ⓘ Cross-Reference Search



AP3407AI datasheet

 ..1. Size:1507K  cn apm
 ap3407ai.pdf pdf_icon

AP3407AI

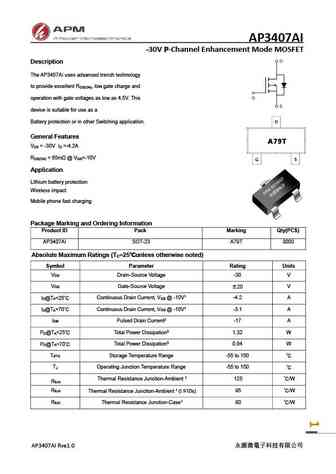

AP3407AI -30V P-Channel Enhancement Mode MOSFET Description The AP3407AI uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = -30V I =-4.2A DS D R ... See More ⇒

 8.1. Size:2028K  allpower
 ap3407.pdf pdf_icon

AP3407AI

... See More ⇒

 8.2. Size:1473K  allpower
 ap3407s.pdf pdf_icon

AP3407AI

... See More ⇒

 8.3. Size:1316K  cn apm
 ap3407mi.pdf pdf_icon

AP3407AI

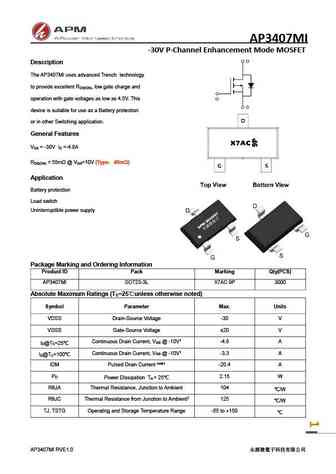

AP3407MI -30V P-Channel Enhancement Mode MOSFET Description The AP3407MI uses advanced Trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = -30V I =-4.8A DS D R ... See More ⇒
