AP90P03NF PDF and Equivalents Search



AP90P03NF Specs and Replacement

Type Designator: AP90P03NF

Type of Transistor: MOSFET

Type of Control Channel: P-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 109 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 30 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 90 A

Tj ⓘ - Maximum Junction Temperature: 175 °C

Electrical Characteristics

tr ⓘ - Rise Time: 13 nS

Cossⓘ - Output Capacitance: 769 pF

Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.0064 Ohm

Package: PDFN5X6-8L

AP90P03NF substitution

- MOSFET ⓘ Cross-Reference Search



AP90P03NF datasheet

 ..1. Size:1053K  cn apm
 ap90p03nf.pdf pdf_icon

AP90P03NF

AP90P03NF -30V P-Channel Enhancement Mode MOSFET Description The AP90P03NF uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = -30V I =-90A DS D R ... See More ⇒

 7.1. Size:647K  1

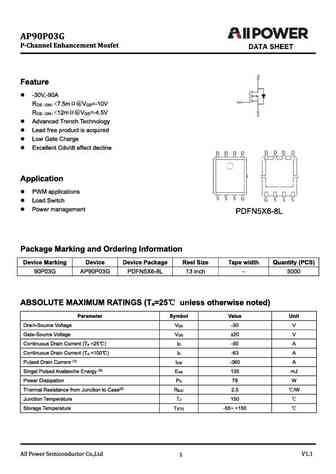

 ap90p03g.pdf pdf_icon

AP90P03NF

... See More ⇒

 7.2. Size:595K  1

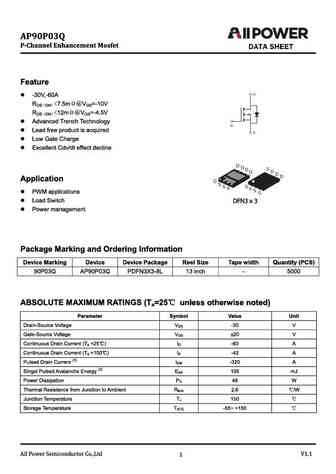

 ap90p03q.pdf pdf_icon

AP90P03NF

... See More ⇒

 7.3. Size:690K  allpower

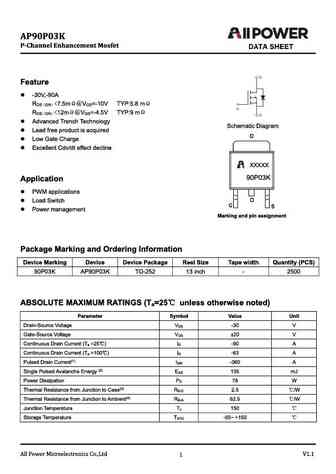

 ap90p03k.pdf pdf_icon
